How do I install SQL-RD?

This is a step by step installation process for SQL-RD.

  • Before beginning the installation, please ensure that ALL of the prerequisites listed on the SQL-RD Prerequisites page have been met. This ensures that SQL-RD runs as expected. Failure to meet the listed prerequisites may result in errors occurring.
  • Except for trial users, Installation and Configuration of SQL-RD on a new server are not part of normal technical support. If assistance is needed or requested during the SQL-RD installation or configuration process, Professional Services can help for a nominal consultation fee.
  • A reboot of the SQL-RD server will be required after installation is complete.

Preparing for the Installation

These steps must be completed prior to running the SQL-RD installer.

After downloading and extracting the latest build/version of SQL-RD, perform the following steps:

User Account Control

  • If you are installing SQL-RD for the first time on this server, turn off the User Account Control (UAC). You can turn it back on once the installation of SQL-RD has completed.

Unblock the SQL-RD installer

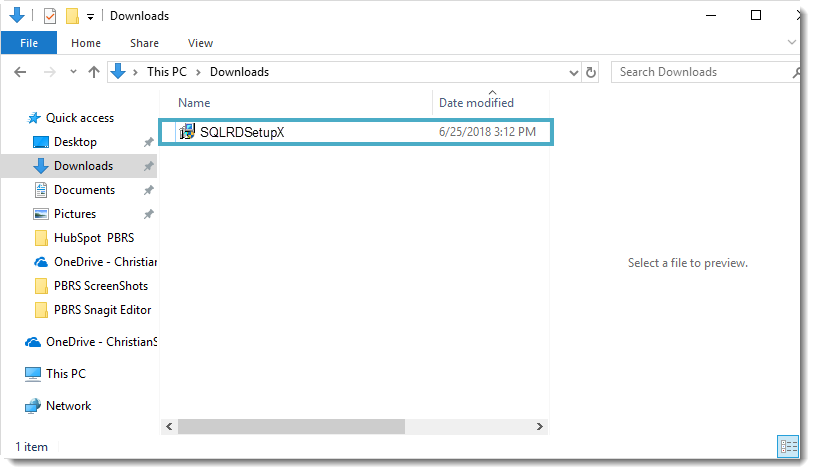

  • Open the appropriate SQL-RD version/build folder.
This is most likely located in your Downloads folder.

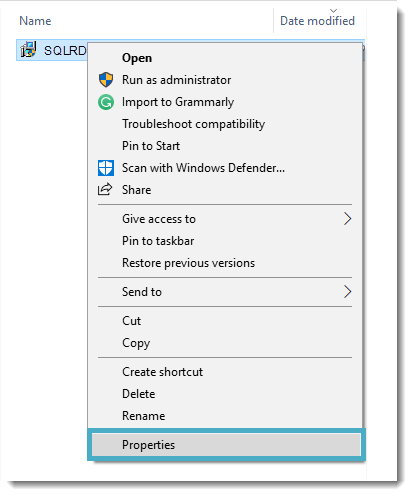

  • Highlight and then right-click the SQLRDSetup file.
SSRS. Installing SQL-RD in your server.
  • Click Properties.
SSRS. Installing SQL-RD in your server.

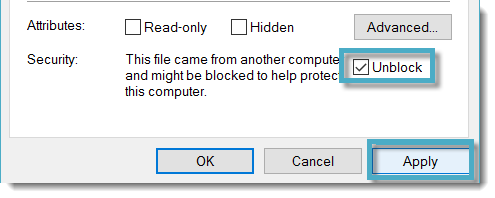

  • On the General tab, click Unblock in the lower right corner.
SSRS. Installing SQL-RD in your server.
If Unblock is not present, the SQL-RD installer is already unblocked.
SSRS. Installing SQL-RD in your server.
Some security features, such as Windows SmartScreen, can block certain files or flag them as potentially unwanted. If the SQL-RD installer is run without being unblocked, SQL-RD will not run properly.
  • Click Apply.
  • Click OK.

Change the Compatibility Settings

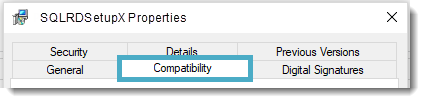

  • On the Properties window for the SQLRDSetupX that you opened in the previous step, click the Compatibility tab.
SSRS. Installing SQL-RD in your server.

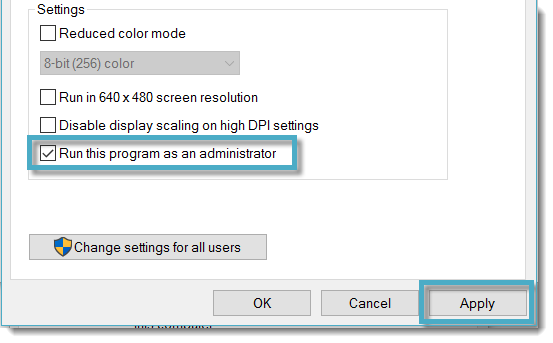

  • In the Settings section at the bottom of the window, ensure that Run this program as an administrator has a check next to it. If it does not, check it.
SSRS. Installing SQL-RD in your server.
  • Click the Apply and OK.
You must perform this step even if you are logged in as an Administrator or have Administrative rights on this computer.

Beginning the Installation

To install the latest build/version of SQL-RD, perform the following steps:

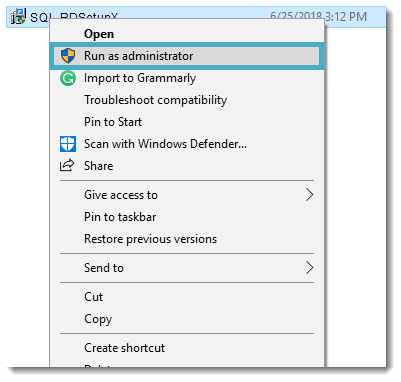

  • Right-click the SQLRDSetupX and select Run as Administrator.
SSRS. Installing SQL-RD in your server.

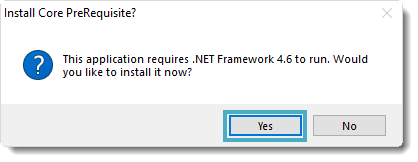

  • Click on the Yes on the Install Core PreRequisite? pop-up window.
SSRS. Installing SQL-RD in your server.

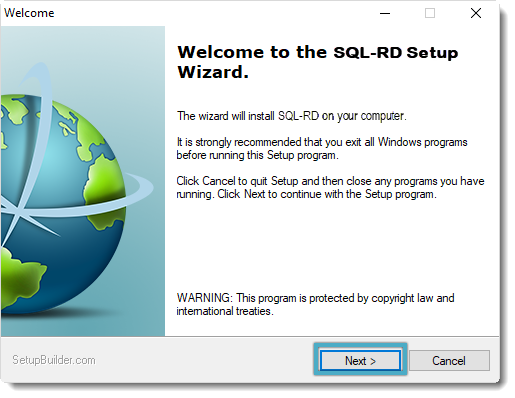

  • Click Next on the Welcome message.
Welcome to the SQL-RD Setup Wizard.

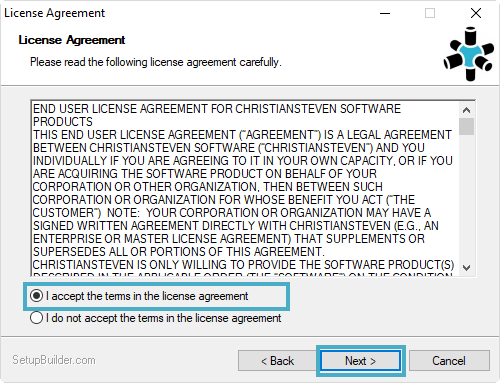

  • Carefully read the License Agreement.

Once you have fully read and understand the License Agreement, click the radio button next to I accept the terms in the license agreement. Then, click Next.

If you do not accept the terms of the license agreement, you will not be able to proceed with the installation.
Welcome to the SQL-RD Setup Wizard: License Agreement.

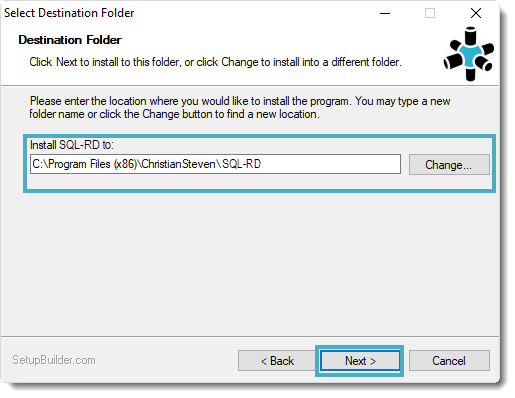

  • Now, you will see the Select Destination Folder screen.  You can choose to leave the default destination folder that is currently listed or select your own. Click Next.
Leaving the default destination as the destination folder is recommended.
Welcome to the SQL-RD Setup Wizard: Destination Folder

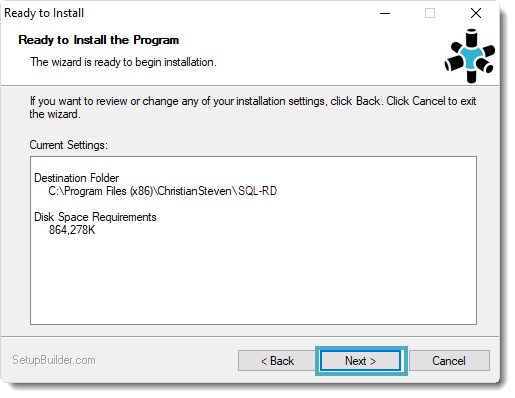

  • You should now see a Ready to Install window detailing the current settings for the SQL-RD installation. These details include the destination folder you chose in Step 10, as well as the Disk Space Requirements for the SQL-RD installation.
    • Click Next.
Welcome to the SQL-RD Setup Wizard: Ready to Install
The Disk Space Requirements will vary from build to build. This is only the amount of disk space that is required for the installation/components of SQL-RD

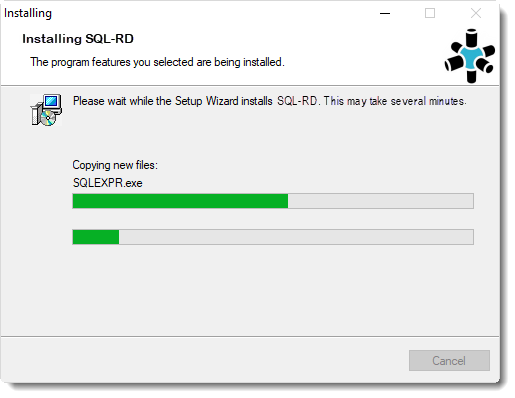

  • Allow the SQL-RD installation to complete. You do not need to click anything during this process.
Welcome to the SQL-RD Setup Wizard: Installing SQL-RD

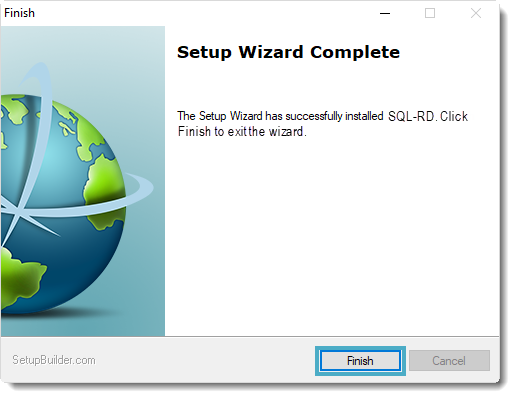

  • When the Setup Wizard Complete screen appears, click Finish.
Welcome to the SQL-RD Setup Wizard: Finish

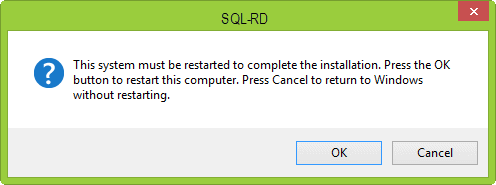

  • At this time, you may see a pop-up stating that you will need to restart your computer in order to complete the SQL-RD installation. Click OK.
Should you not receive this message (below) you will need to manually reboot the server at this time.
Welcome to the SQL-RD Setup Wizard: System Restart

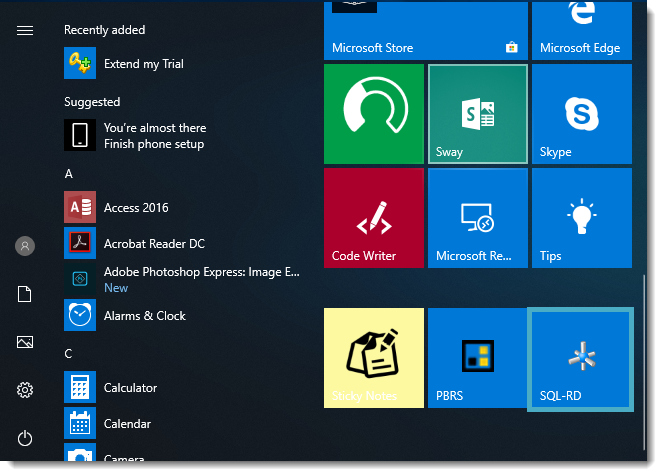

SQL-RD is now successfully installed on this server.

SSRS. SQL-RD in your server.

Database Installation

The first time you open SQL-RD, you will need to configure the SQL-RD database. This is where SQL-RD will store the information regarding the schedules you set up within the software.

Select how you want to install the SQL-RD database to proceed with the database installation steps.
