How do I setup a Dynamic Schedule for SSRS in SQL-RD?

A dynamic schedule allows you to send multiple instances of the same report. For each instance, SQL-RD will automatically enter the required parameter values, export the report and deliver it to the required destination.

Dynamic Schedules for SSRS

A dynamic schedule allows you to send multiple instances of the same report, For each instance, SQL-RD will automatically enter the required parameter values, export the report and deliver it to the required destination. Dynamic Schedules can be used in a variety of scenarios.

Dynamic Schedule Scenario

  • This powerful mechanism can only really be described with an example:
The Springfield Donut Company has 1500 stores worldwide. Ray is the SSRS Reports guru at Head Office. He has to send each store manager a report of their weekly statistics every Monday. He does not want to write 1500 static report schedules.
To make matters worse, stores which are not doing well are regularly closed off, and new stores are being brought on-line weekly.
And that’s not all. It has just been announced that SDC has just acquired a rival company and 800 new stores are coming on board tomorrow morning.
It’s the middle of summer, so 2 of Ray’s 3 staff are on vacation. He has a meeting with the Chairman in 3 hours, and, if he can demonstrate that everything will be in place and running by 5pm today, he will get a $25,000 bonus.
Ray is not looking forward to writing 800 new single report schedules.
“What I need”, he thinks to himself, “is a single dynamic schedule which will reel through the database, populate the StoreId parameter automatically, run the report for that store, email it to the store manager using the email address in the database, and repeat the above actions for every store in the database.
I need this to happen automatically every Monday at 0100 hours.”
  • To resolve the issue illustrated above:
  1. Start by writing a report with a single parameter called StoreID. Write the report so that when a StoreID is entered into this parameter, the resulting report is populated by that store's sales information only. We will call StoreID the Key Parameter.
  2. Make sure that a database table somewhere (ODBC compliant) has some of the other information we will need e.g. the email address to email each store's report to, or the folder you want to export it to, or the printer you would like the report to print out on. For example:
SSRS. Example of a dynamic schedule in SQL-RD

The values can be stored in the same database or even the same table, but are typically stored in a different database e.g. HR database as these are maintained on a daily basis and are therefore more likely to be right. It also takes a lot of mundane administration work from you!

  • In simple terms here is what SQL-RD will do with a dynamic schedule:
  1. It will look at a list of StoreIDs defined by you. e.g. Select StoreID from mytable where closeddown <> 'T' (Don't be scared, the wizard will walk you through setting up SQL queries)
  2. It will pick the first StoreID in the list and enter it into the report.
  3. The report will begenerated for that store.
  4. The generated report will now be delivered to the specified email address and SQL-RD knows this because you will tell SQL-RD where to get the email address e.g. select email from anothertable where StoreID = [StoreID]

How do I create Dynamic Schedule for SSRS?

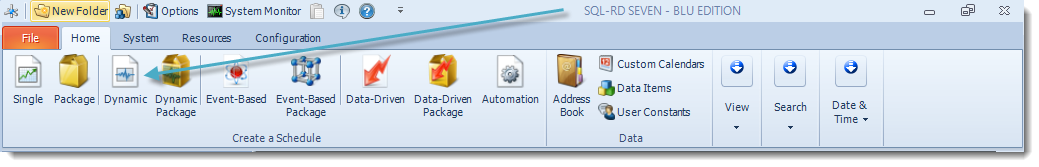

  • Go to Dynamic
SSRS. SQL-RD Home Main Menu

SSRS. General Wizard in Dynamic Schedule Wizard in SQL-RD

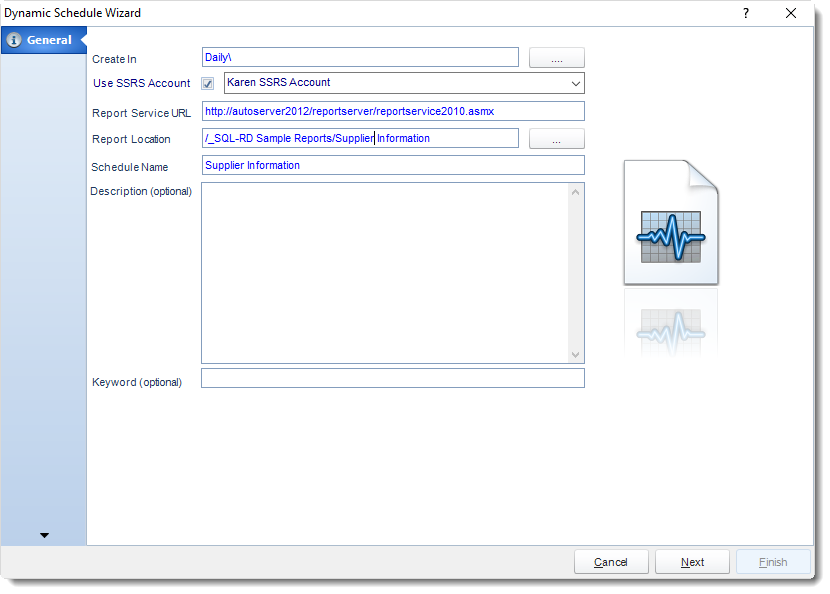

General Wizard

  • Create In: This section is for select the folder where you want to create the single report in.
  • Use SSRS Account: Select the SSRS Account where your report server is located, or create one by clicking on (...) button next in Report Location.
Hint: SQL Azure Reporting Services- when writing your report, make sure you have enabled Forms Authentication. You should use the 2010 .asmx address for your reporting service URL.

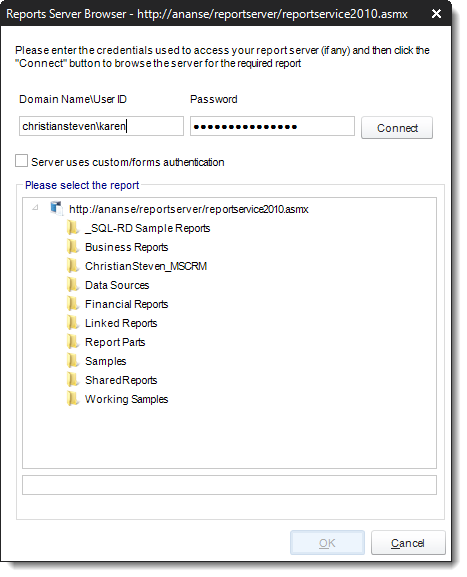

SSRS. Report Server Browser in SQL-RD.
  • Select the SSRS Account or create one by writing the name into the combo box.
  • SSRS Server URL: Enter the address of your reporting services server and click Connect.
  • Select the report and click OK.
SSRS. Creating New SSRS Account in SQL-RD.
  • Click OK.

SSRS Account is now added in SQL-RD.

  • Report Service URL: Enter the address of your reporting services server.
  • Report Location: Browse through the report server browser to select the desired report. Authenticate to the reports server if necessary.
Hint: SQL Azure Reporting Services- when writing your report, make sure you have enabled Forms Authentication. You should use the 2010 .asmx address for your reporting service URL.
SSRS. Report Server Browser in SQL-RD.
  • Schedule Name: Write in the name of the package.
  • Description (optional): you may write a short description to help other users identify exactly what this schedule is and what it is expected to do.
  • Keyword (optional): Enter some keywords which can be used later by Smart Folders to identify this schedule.

Click Next to continue to the next wizard section.

Schedule Wizard

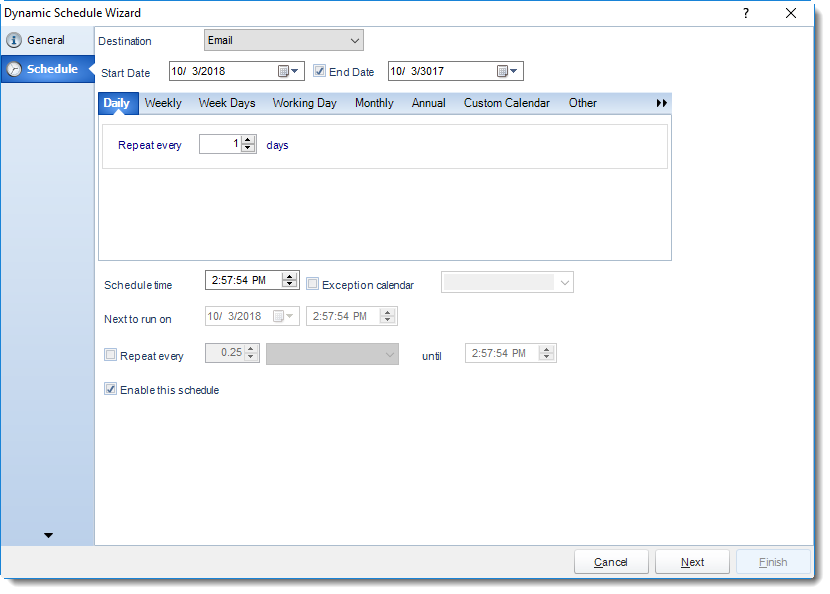

SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD

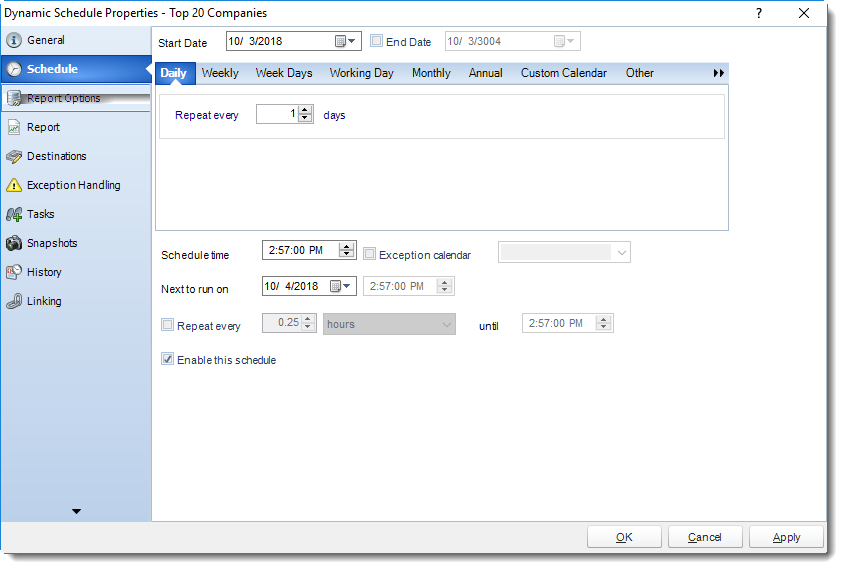

In this section, you will decide when the report will execute. There are a variety of options:

  • Daily: Run a report every day or at a frequency of days.
    • Sub options: Repeat every X Days.
Example: Run the schedule every 3 days.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Weekly: Run a report on a weekly time frame.
    • Sub options: Repeat every X weeks.
Example: Run the schedule every 2 Weeks.
  • On: Select the specific days of the week the schedule will run. If only once a week,select only the day of the week it will run.
Example: Run every Monday, Wednesday, and Friday.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Week Days: Run the schedule Monday through Friday.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Working Day: Run the schedule starting on a specific day of the month. Indicate which day of the month the schedule will run. E.G. run the schedule on the 4th working day of the month.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Monthly: Run the schedule on a monthly time frame.
    • Use the following options: Checking this box will enable you to select frequency options such as the “last Thursday of the month.” Also you can include or exclude specific months from the schedule.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Annual: Run the schedule every year at a specified time.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Custom Calendar: Select the custom Calendar you wish to use. You can create a new custom calendar from the menu as well. Please see Custom Calendars for more information.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Other: Other scheduling options.
    • Run Schedule every X Minutes, hours, days, weeks, months, years.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • None: No scheduling is required for this item.
SSRS. Schedule Wizard in Dynamic Schedule Wizard in SQL-RD
  • Destination: Select how you would like your report to be delivered. This will also determine some of the options that will show up later in the process. For example, if you select email, you will be asked for email address later.
  • Start Date: Enter the desired starting date for the schedule. This section can be the current date (providing schedule time has not already passed) or a date in the future.
  • End Date: If the schedule is due to end after a certain date enter that here. If the schedule is to run indefinitely, then leave it blank.
  • Schedule time: On the Next Run date, the package will run at this time.
  • Exception Calendar: Choose a calendar that will instruct the schedule to NOT run on those specified days. Please see Custom Calendars for more information.
  • Next to run on: The package will next run on this date.
  • Repeat Every: Rerun the package every x minutes from the scheduled time until your specified time.
For example, you can set up a daily package to run every day at 8 am, and to run every hour until 5 pm.
  • Until: After this date, there will be no automated scheduling of this package.
  • Enable this Schedule: Uncheck this option to Disable the package. Disabled packages are not deleted, but they do not execute automatically. You can re-start the automatic scheduling at a later date by checking this option again. Or right-clicking this schedule from the main screen and selecting Enable.

Click Next to continue to the next wizard section.

Datasources Wizard

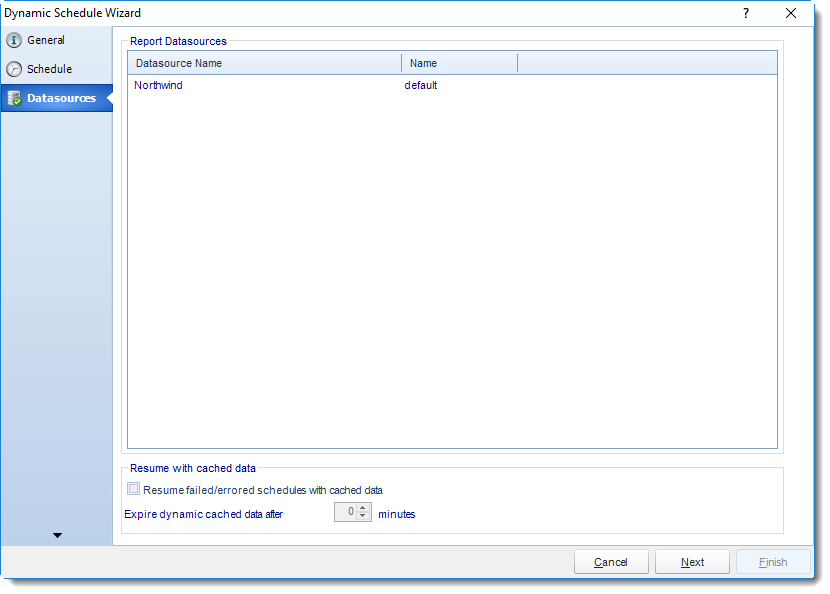

SSRS. Datasources Wizard in Dynamic Schedule Wizard in SQL-RD

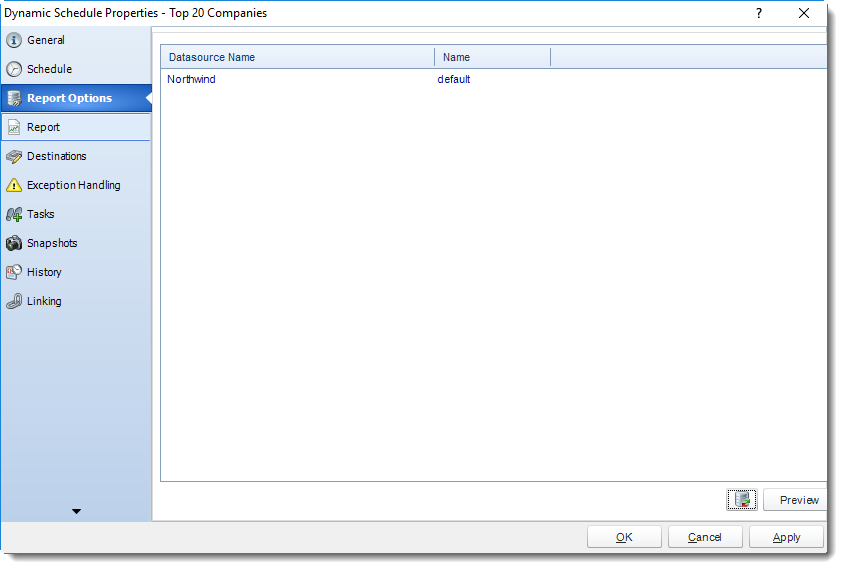

  • In this section you will authenticate to the database the report runs against, set snapshots, and other options.
  • Login Required: Set the authentication information for the report.
SSRS. Datasources Wizard in Dynamic Schedule Wizard in SQL-RD
  • Resume with Cached Data: Enabling this option instructs SQL-RD to resume any failed schedule run where it left off using the cached data instead of starting the schedule from the beginning.

Click Next to continue to the next wizard section.

Key Parameter Wizard

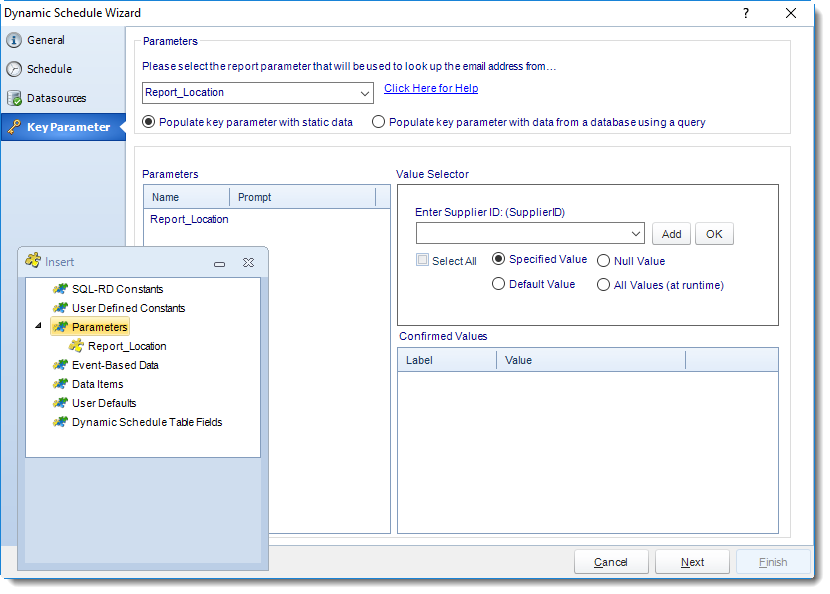

SSRS. Key Parameter Wizard in Dynamic Schedule Wizard in SQL-RD
  • In this section, you will determine the parameters for your report.
  • On the Key Parameter tab, you will begin by selecting the report parameter that will hold the unique value being “looked up” by your database.
The key parameter is the parameter in your report which will help SQL-RD identify the email address, printer or folder to export to. In the example, Ray's key parameter is "[?StoreID:]" as the email address for each store is stored against the StoreID.
  • Set the Report parameter: Select from the drop down list which parameter will be used to look up your destination. Values in this parameter will be used to look up both the appropriate destination and also generate a unique report for each value.
  • Populate key parameter with static data: This option would be chosen if you DO NOT want SQL-RD to feed multiple parameters in to the report via database. Rather, one parameter value will be chosen, and it will run for a changing list of recipients.
    • The use of this option is better explained with an example.
Ray wants to run the report against the same StoreID. He cannot use a Static schedule as, unfortunately, the store's email address changes weekly. This would mean he would have to edit the static schedule and enter a new email address each time the email changed.
So he writes a Dynamic schedule and uses this option to enter a static StoreID e.g. [?StoreID:] = "1991". The report will now always run for StoreID number 1991 only, but the email address it will be sent to will be the value entered in the database against this store at the time the schedule is run.
If the database is maintained daily, then the report will always be sent to the latest email address.
  • Populate key parameter with data from a database: This is the most common option for users creating dynamic schedules. SQL-RD will use a query to automatically feed key parameter values into your report based on a table.
    • The use of this option is better explained with an example.
Ray wants to run the report for a large number of stores. Normally, he would print a list of all the StoreID that needed a report. He would then run the report, enter one ID, export and email the report. He would move to the next store in the list and do the same again. For SQL-RD to automate RAY's actions, SQL-RD will need a list of StoreIDs which it will reel through - producing a unique report for each store and sending it to the corresponding email address. Using this option, Ray can build the list of stores the report should run for. In short, the list of parameter values which SQL-RD should use to run the report.

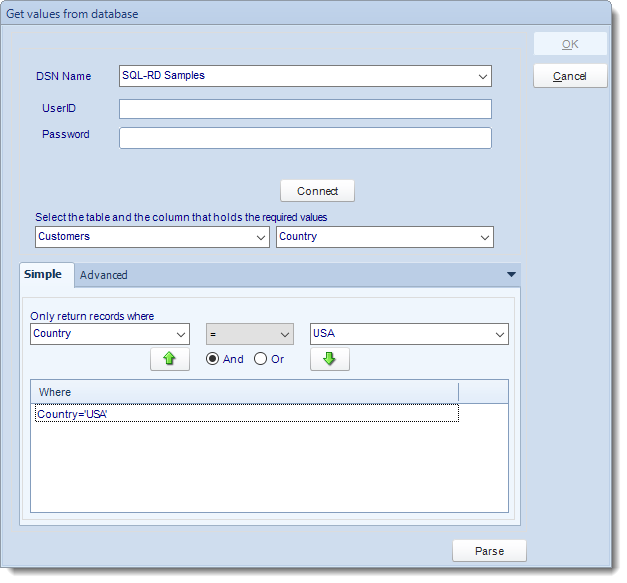

SSRS. Get Values from Database interface in SQL-RD
  • There are 3 requirements in order for SQL-RD to detect your SSRS Report parameters and their parameter values:
    • The parameter must be in use in the report.
    • The parameter must be visible.
    • The parameter must be set to be prompted at run time.
  • If these three requirements are achieved, you should see the parameters in your report listed in this screen.
  • For each parameter, select from the drop down list the value the report must use. In a single schedule, only one parameter value can be run at a time per parameter. You can type a value into the field, or drag and drop an "insert".
  • SQL-RD can handle SSRS Reports with Cascading parameters, or reports where you can select multiple parameter values.
  • Specified Value: Select the value you want in your report.
  • Null Value: Set no value for this parameter.
  • Default Value: It will select the default value.

Click Next to continue to the next wizard section.

Linking Wizard

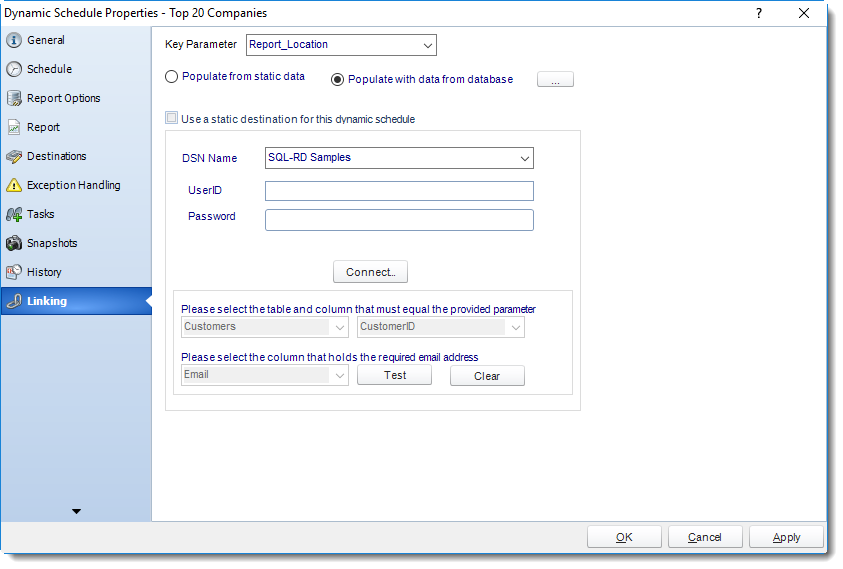

SSRS. Linking Wizard in Dynamic Schedule Wizard in SQL-RD

In this Section we will establish a link between the key parameter values we have selected earlier, and the location of the corresponding destination information.

  • Use static destination: This will export all your report to a single destination e.g. a folder.
  • DSN Name: Drop down and select a DSN.
We strongly recommend System DSNs so that the DSN is visible to SQL-RD even when the user associated with the DSN is logged off.
All communication to databases (including Access databases) is done through ODBC, so you must setup a system DSN to the database before you can use this facility.
When setting up DSNs we recommend (if possible) that you use Windows Authentication (Trusted Connection). This ensures that your username and password are not required to be stored in SQL-RD (more secure) and overcomes a large number of security restrictions which Windows places on DSNs. When using Windows Authentication, make sure that the SQL-RD NT service user (or background application service user) has full rights to the database otherwise, though you will connect when you are logged in, automated scheduling will fail if the Service user has not got rights to the database.
When setting up a DSN to a SQL server, you must ensure that the "Default Database" setting is set to the database you are connecting to (Windows defaults this to "Master").
  • UserID: Enter the User ID SQL-RD should use to log on to the database
  • Password: Enter the password associated with the above user.
  • Connect: Connect to the Database
Here is where Ray connects to the database and tells SQL-RD where it will find the StoreID value, and what the corresponding email address is.
  • Select the table name (e.g. ContactInfo) and the column in that table (e.g. StoreID) which matches the parameter value (StoreID) which you determined in the previous step.
  • Select the column in the table that holds the email address (or folder path or printer name) that corresponds to the above parameter value.

Advanced Functionality

In the instructions and explanations above, it is assumed that the email address column resides in the same table as the key parameter (StoreID). It is also assumed that all key parameter and email records qualify to receive a report. Very often, this is not true. There are certain criteria which must be met (e.g. Ray may wish to run reports only for stores whose ID's are between 10 and 97 only, with email addresses which are not blank or null, and email addresses which do not end in ".co.uk". Also, the email address which corresponds to the key parameter is actually stored in a separate table) before a report is sent.

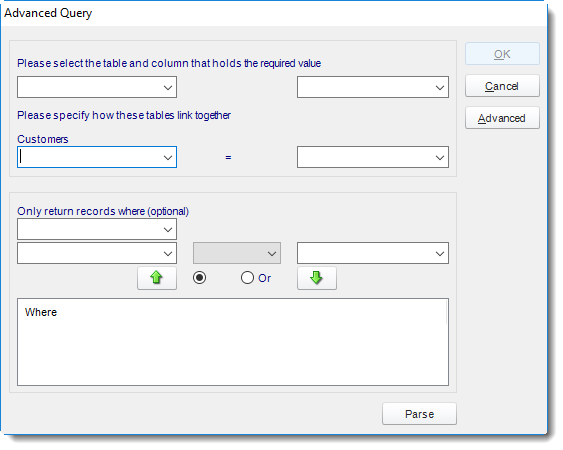

  • To achieve the above advanced functions, select Advanced from the dropdown list shown below.
SSRS. Linking Wizard in Dynamic Schedule Wizard in SQL-RD

SSRS. Linking Wizard in Dynamic Schedule Wizard in SQL-RD
  • This functionality is for advanced users only.
The screen is structured in a standard format which will be familiar to database programmers and people who are familiar with SQL or boolean statements.
For more information on how to write SQL statements, please see your database administrator.
You can build your database query visually using the form provided, as shown above.
If you are fluent in SQL, you may wish to enter your SQL statement manually.
Click to see the advanced interface. Here we can add the extra limiting criteria. You can type directly in the "Edit Query" box and enter the SQL statement.

Click Next to continue to the next wizard section.

Destination Wizard

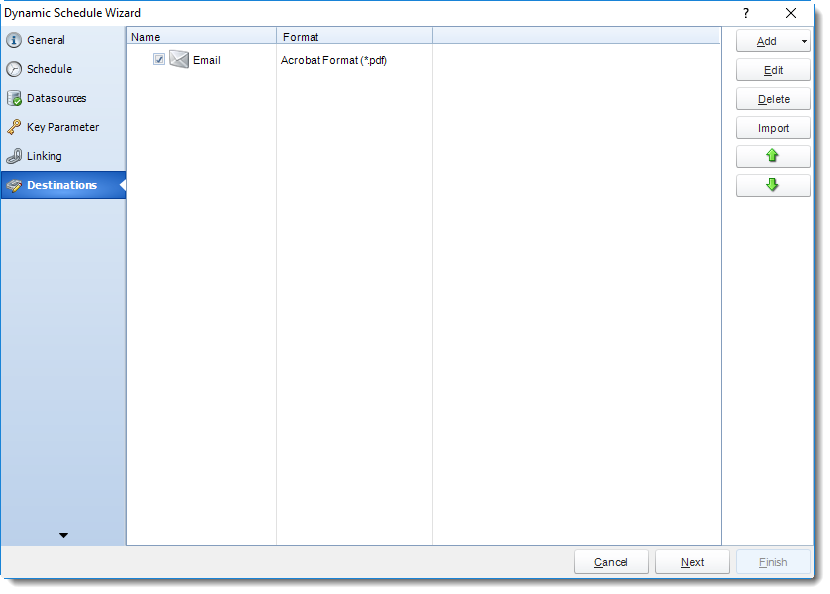

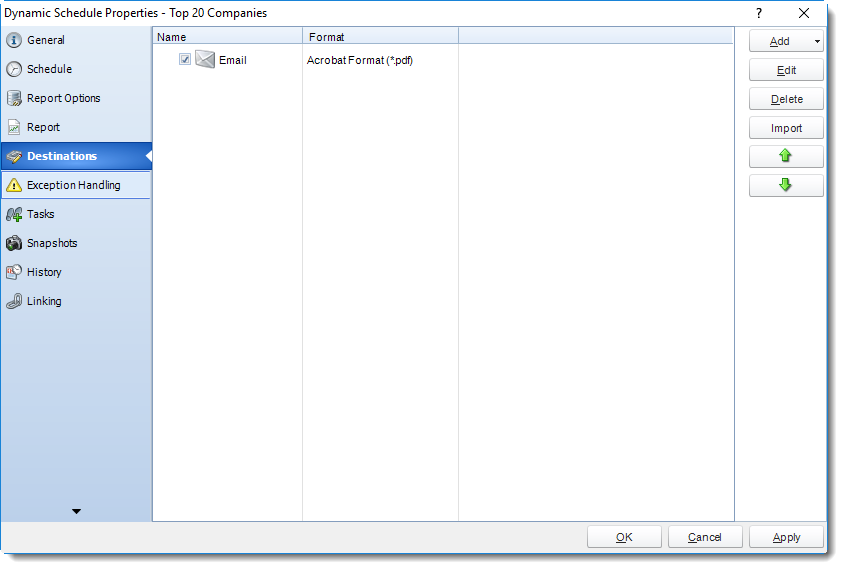

Under the Destinations tab, the destination that you chose previously under the Schedule section will now automatically pop-up. Secondly there is no ‘To’ address because this information is being retrieved from a database. The reason for this is that since the destination type was defined in the previous step.

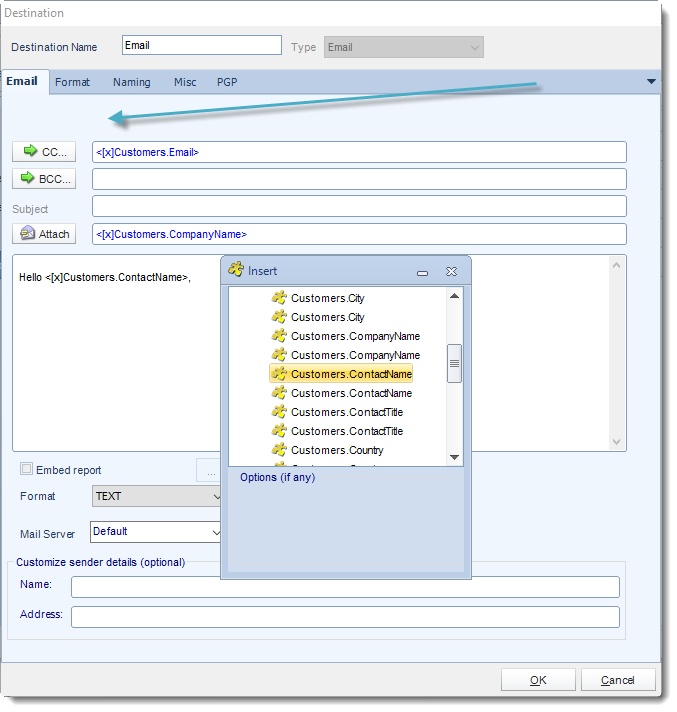

SSRS. Email Destinations in SQL-RD
  • Use the Inserts Function to customize the email subject and body as desired. Simply drag and drop Dynamic Table Fields from your Inserts list.
  • Select the format for your report.
SSRS. Destinations Wizard in Dynamic Schedule Wizard in SQL-RD

Click Next to continue to the next wizard section.

Exception Handling Wizard

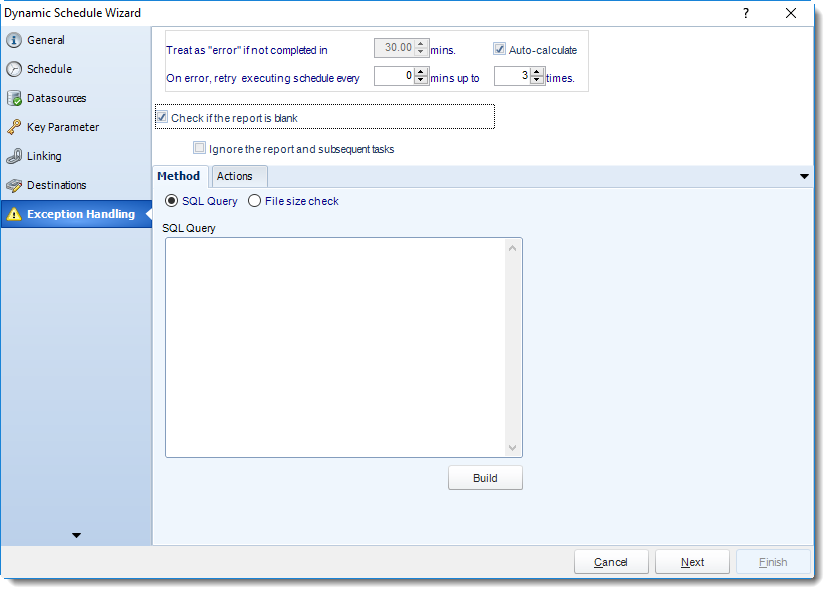

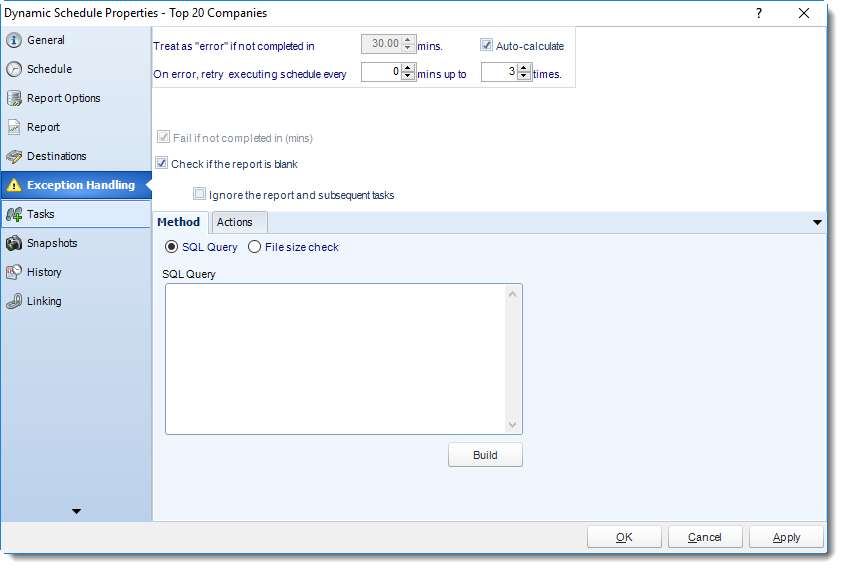

SSRS. Exception Handling Wizard in Dynamic Schedule Wizard in SQL-RD
  • Treat as “error” if not completed in X minutes: If a report takes longer than the specified amount of time to run, this option will treat the schedule as an error and follow the appropriate action. The “Auto-calculate” option instructs SQL-RD automatically determine how long a schedule should take to run the report. If it takes longer than the calculated amount of time, then it is an error.
If manually determining the error timing, please double check the run time of the report in order to get the correct time estimate.
  • On error, retry executing schedule every: If set to 0, SQL-RD will deem the schedule as "Failed" the first time it encounters an error. The schedule will not run again until its next scheduled time. Change the value to tell SQL-RD how many times you want it to retry running the report before declaring it as "Failed."
  • Check if the Report is Blank: If a report is blank because it genuinely returned no data, recipients can misconstrue this as an error with the scheduler. This option allows you to identify genuine empty reports and instruct SQL-RD on what to do with them.
  • Ignore the report and subsequent tasks: if the report is blank, do not send the report. The report will not be delivered to the destination. No custom tasks will be run.

Method

SSRS. Exception Handling Wizard in Dynamic Schedule Wizard in SQL-RD
  • Select the Method that will determine whether a report is blank.
  • SQL Query: Select this option to use a user made query that will determine if the report is blank. If the query returns no results, the report is blank.
  • Click Build.
  • Get values from a database window will appear. For more information about Get values from database, click here.
SSRS. Get values from Database interface in SQL-RD
  • File size check: Assume reports is blank if size is under "X" bytes.
SSRS. Exception Handling Wizard in Dynamic Schedule Wizard in SQL-RD

Actions

SSRS. Exception Handling Wizard in Dynamic Schedule Wizard in SQL-RD
  • Select an action from the task list. This task will be executed in the event that a schedule is blank.
  • For more information about tasks, click here.
Tip: You can send a notification if a report is considered blank instead of sending the report. Simply select “check if a report is blank” then select “Ignore the report.” In the actions tab, select “Send Email” from the list. Compose your email and save.

Click Next to continue to the next wizard section.

Custom Task Wizard

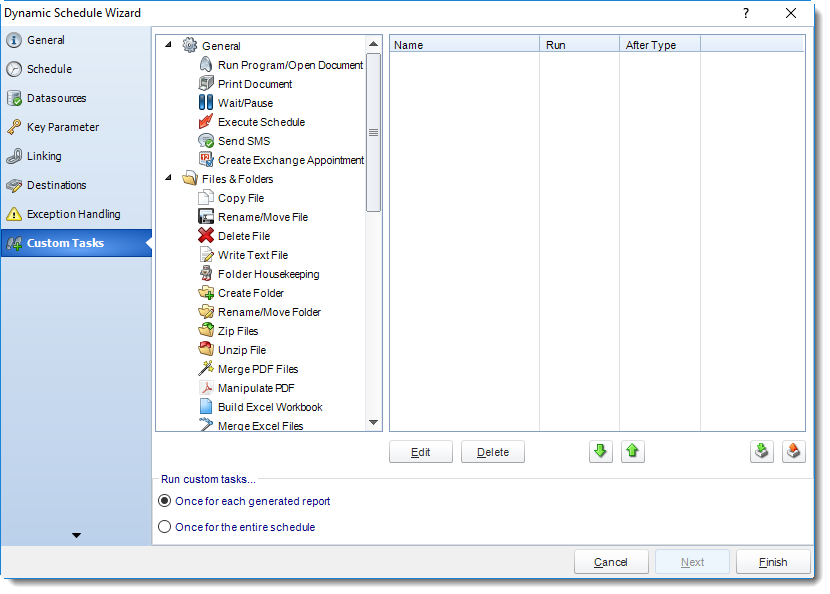

SSRS. Custom Task Wizard in Dynamic Schedule Wizard in SQL-RD
  • In the section you have the option of setting up custom tasks. Custom tasks are business process automation tools that can be auto triggered before or after a report runs.
  • For more information on Custom Tasks, click here.
  • Once for each generated report: Each task will be ran for each successfully generated report within the schedule.
  • Once for the entire schedule: Each task will be ran once when the schedule has completed successfully.
  • If you have no desire to add a Custom Task, you can click finish to complete the schedule.

Dynamic Schedule Context Menu

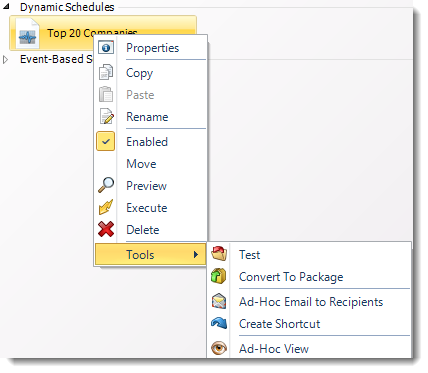

SSRS. Dynamic Report Schedule Context Menu in SQL-RD
  • Right-Click on a schedule to see the following actions:
    • Properties: Edit the schedule from here. Or you can just double click on the schedule.
    • Copy: Use this to copy the schedule. Right-click in the "white space" of the folder you wish to copy it to and select Paste button.
    • Rename: Rename the package.
    • Enabled: Schedules are enabled when there is a check icon beside this option. To stop a schedule from running, or to "pause" it for a while, select this option to remove the check icon. Disabled schedules will not run until they are enabled again.
    • Move: Use this option to move the report into an existing package.
    • Preview: Preview the report before execution.
    • Execute: This button will execute the schedule immediately. Note that the next run date and time is not moved on as a result of a manual execution. They only move on if the schedule is run automatically by one of the schedulers
    • Delete: Selecting this option will delete the schedule.
    • Test: Use this option to test the schedule and export it to selected "test" destinations.
    • Convert To Package: This button will move this report into a package. The package will have the name of the single schedule report.
    • Ad-Hoc Email to Recipients: Select this option to send an ad-hoc email to all recipients of this package. You can use this to alert recipients to a planned system outage, or any other useful information.
    • Create Shortcut: Use this option to create a shortcut you can save in any location on your PC. Execute the shortcut to execute the schedule in SQL-RD.
    • Ad-Hoc View: This button allows you to preview the report.

Dynamic Schedule Properties

SSRS. Dynamic Report Schedule Context Menu in SQL-RD
  • To access your schedule properties, right click on a schedule and select properties.
  • Similar to the schedule wizard, you adjust settings to your schedule such as timing, error handling, or custom tasks.
  • General
SSRS. Dynamic Schedule Properties in SQL-RD
  • Schedule
SSRS. Dynamic Schedule Properties in SQL-RD
  • Report Options
SSRS. Dynamic Schedule Properties in SQL-RD

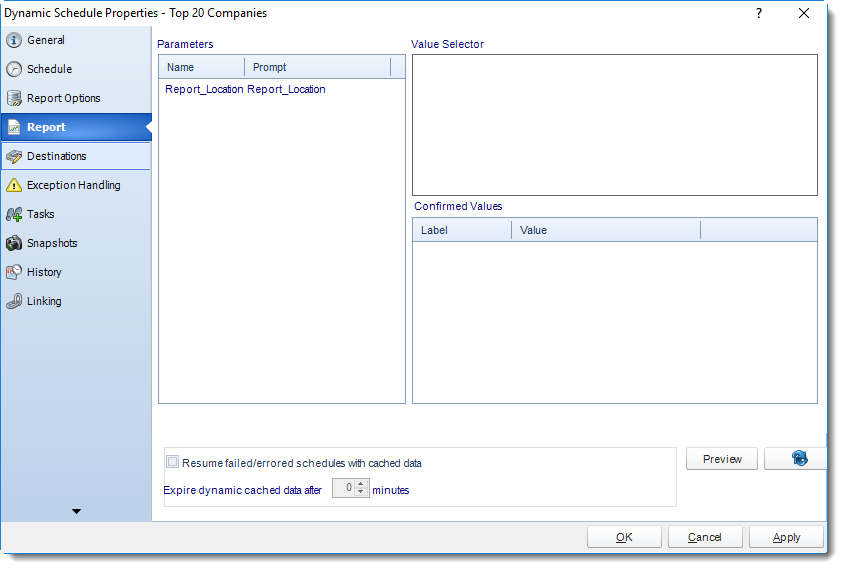

Report

SSRS. Dynamic Schedule Properties in SQL-RD
  • Destinations
SSRS. Dynamic Schedule Properties in SQL-RD
  • Exception Handling
SSRS. Dynamic Schedule Properties in SQL-RD

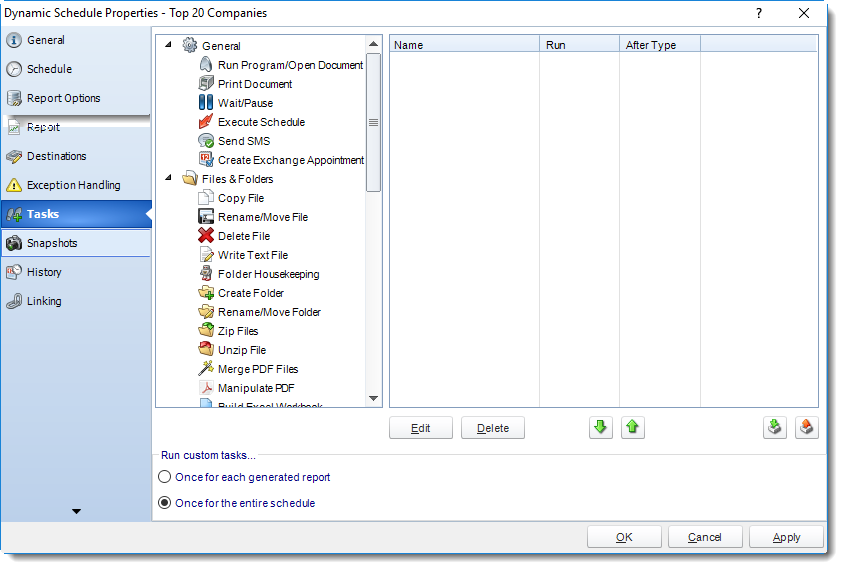

Tasks

SSRS. Dynamic Schedule Properties in SQL-RD

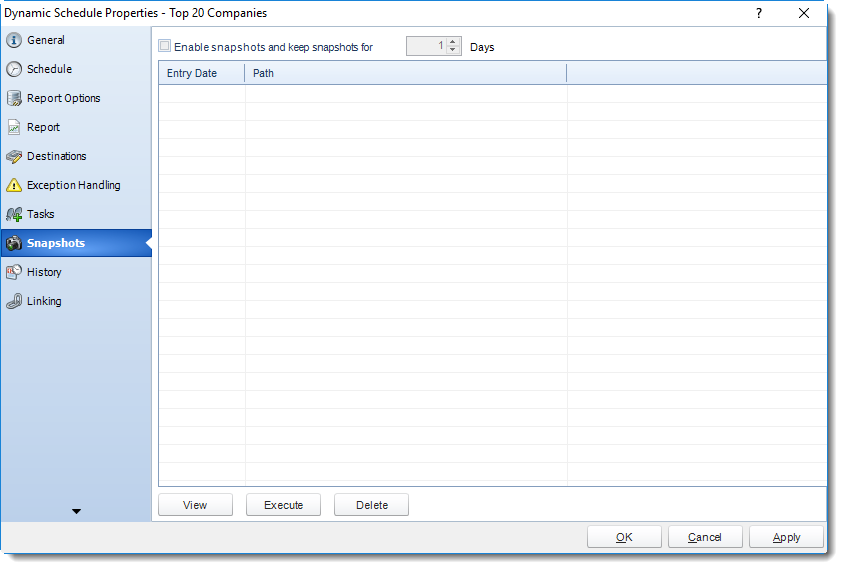

  • Snapshots: A snapshot is a copy of each report a schedule or a package generates. Keeping snapshots enables you to resend past reports without generating them afresh - especially if the data has changed in the meantime.
    • Simply select the number of days to keep the snapshots.
SSRS. Dynamic Schedule Properties in SQL-RD

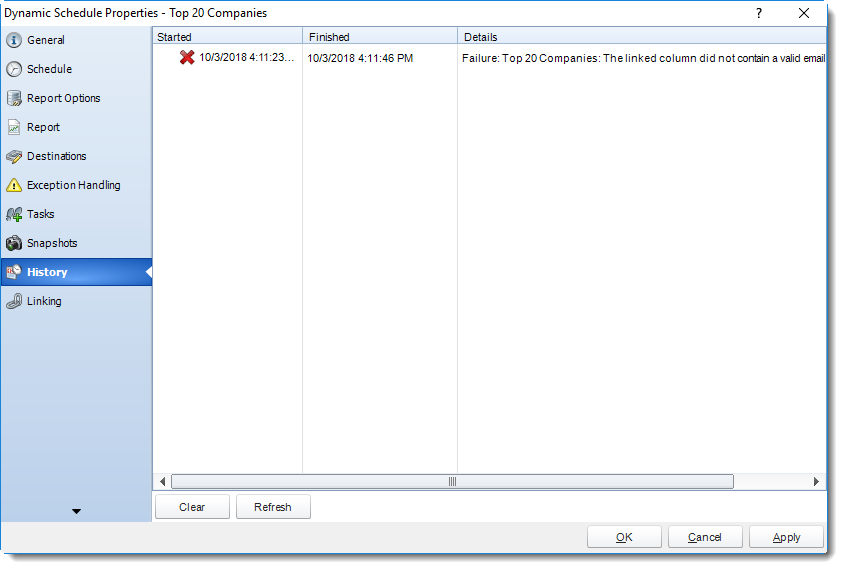

  • History: Review the schedules history. Successes, failures, and other data is located here.
SSRS. Dynamic Schedule Properties in SQL-RD
  • Linking
SSRS. Dynamic Schedule Properties in SQL-RD
