How do I setup a Package Reports Schedule for SSRS in SQL-RD?

The purpose of the wizard will be to guide you through the process of setting up a number of reports to be generated at defined intervals and delivered to one or more defined destinations - together.

Package Report Schedule for SSRS.

The purpose of the wizard will be to guide you through the process of setting up a number of reports to be generated at defined intervals and delivered to one or more defined destinations - together.

Example: Your entire monthly report pack (consisting of a number of reports) can be sent to a recipient with all reports attached to the single email. You can also zip up the reports into a single zip file, or export them out to a single Excel workbook, or export & merge them into a single PDF file.

How to Create a Package Schedule Report for SSRS

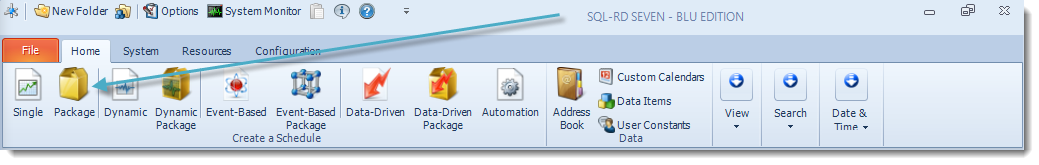

  • Go to Package.

SQL-RD Home Main Menu



SSRS. General Wizard Package Schedule Report Wizard in SQL-RD

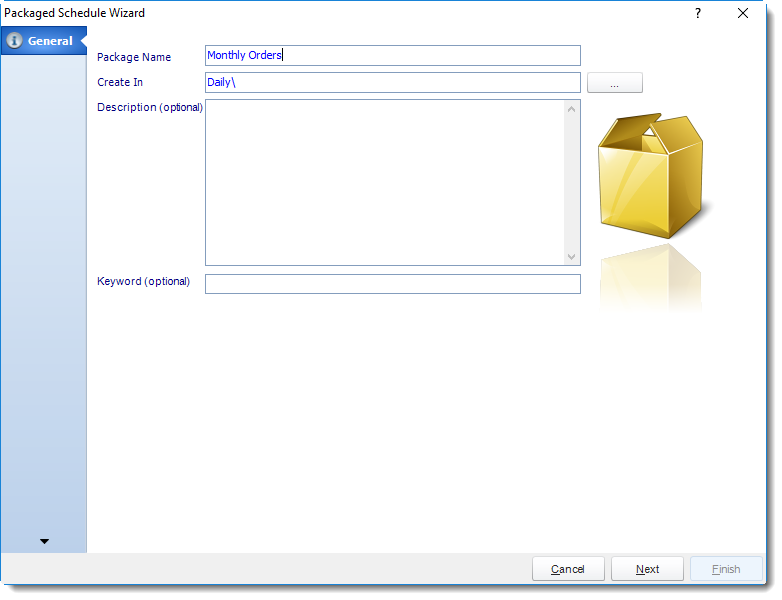

General Wizard

  • Package Name: The name of the package.
  • Create In: The SQL-RD folder where the package is stored.
  • Description: A short description to help other users identify exactly what this schedule is and what it is expected to do.
  • Keyword: Enter some keywords which can be used later by Smart Folders to identify this schedule.

Click Next to continue to the next wizard section.

Schedule Wizard

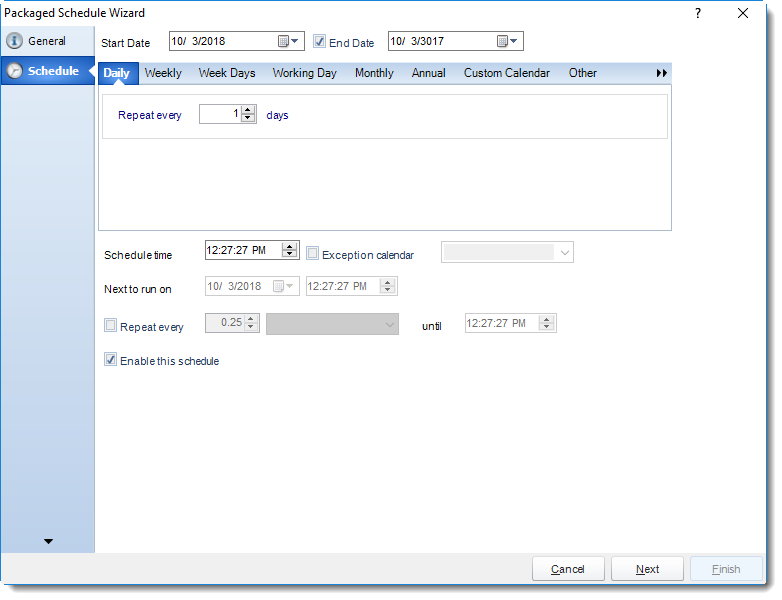

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

In this section, you will decide when the report will execute. There are a variety of options:

  • Daily: Run a report every day or at a frequency of days.
    • Sub options: Repeat every X Days.
Example: Run the schedule every 3 days.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Weekly: Run a report on a weekly time frame.
    • Sub options: Repeat every X weeks.
Example: Run the schedule every 2 Weeks.
  • On: Select the specific days of the week the schedule will run. If only once a week,select only the day of the week it will run.
Example: Run every Monday, Wednesday, and Friday.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Week Days: Run the schedule Monday through Friday.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Working Day: Run the schedule starting on a specific day of the month. Indicate which day of the month the schedule will run. E.G. run the schedule on the 4th working day of the month.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Monthly: Run the schedule on a monthly time frame.
    • Use the following options: Checking this box will enable you to select frequency options such as the “last Thursday of the month.” Also you can include or exclude specific months from the schedule.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Annual: Run the schedule every year at a specified time.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Custom Calendar: Select the custom Calendar you wish to use. You can create a new custom calendar from the menu as well. Please see Custom Calendars for more information.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Other: Other scheduling options.
    • Run Schedule every X Minutes, hours, days, weeks, months, years.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • None: No scheduling is required for this item.

SSRS. Schedule Wizard Package Schedule Report Wizard in SQL-RD

  • Start Date: Enter the desired starting date for the schedule. This section can be the current date (providing schedule time has not already passed) or a date in the future.
  • End Date: If the schedule is due to end after a certain date enter that here. If the schedule is to run indefinitely, then leave it blank.
  • Schedule time: On the Next Run date, the package will run at this time.
  • Exception Calendar: Choose a calendar that will instruct the schedule to NOT run on those specified days. Please see Custom Calendars for more information.
  • Next to run on: The package will next run on this date.
  • Repeat Every: Rerun the package every x minutes from the scheduled time until your specified time.
For example, you can set up a daily package to run every day at 8 am, and to run every hour until 5 pm.
  • Until: After this date, there will be no automated scheduling of this package.
  • Enable this Schedule: Uncheck this option to Disable the package. Disabled packages are not deleted, but they do not execute automatically. You can re-start the automatic scheduling at a later date by checking this option again. Or right-clicking this schedule from the main screen and selecting Enable.

Click Next to continue to the next wizard section.

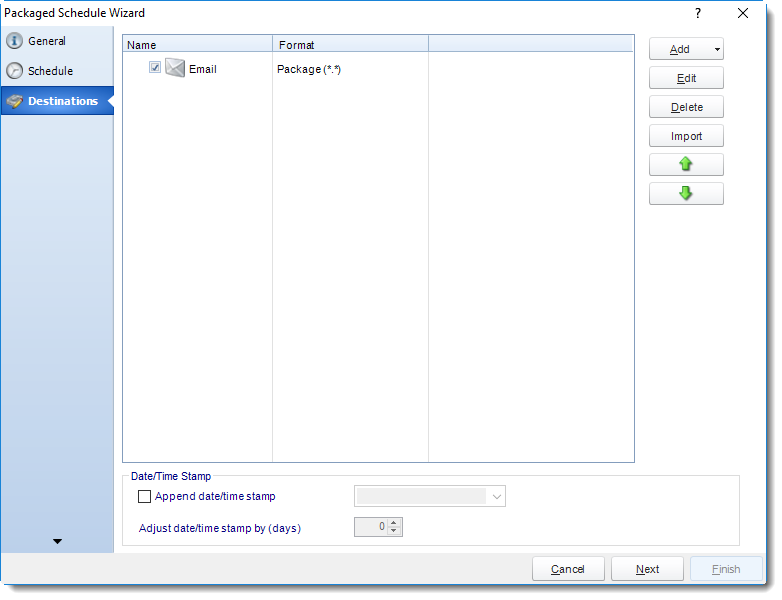

Destinations Wizard

In this section, you will decide where your schedule will be delivered. The list in the center will display the list of destinations you have added to the schedule. You can organize the various destinations’ order by clicking on the green up and down arrows.

SSRS. Destination Wizard Package Schedule Report Wizard in SQL-RD

  • Add: Click here to add a destination. You have several options which are: Email, Disk, Fax, Slack, Google Drive, Google Sheets, FTP, ODBC, Printer, Sharepoint, SMS, and Dropbox.

SSRS. Destination Wizard Package Schedule Report Wizard in SQL-RD

  • Edit: Select a destination and click to edit it's properties. Or simply double-click on the destination.
  • Delete: Select a destination and click this button to delete it.
  • Import: click here to import from the list of default destinations.
  • For more information about Type of Destinations, click here.
  • For more information about Output Formats, click here.

Click Next to continue to the next wizard section.

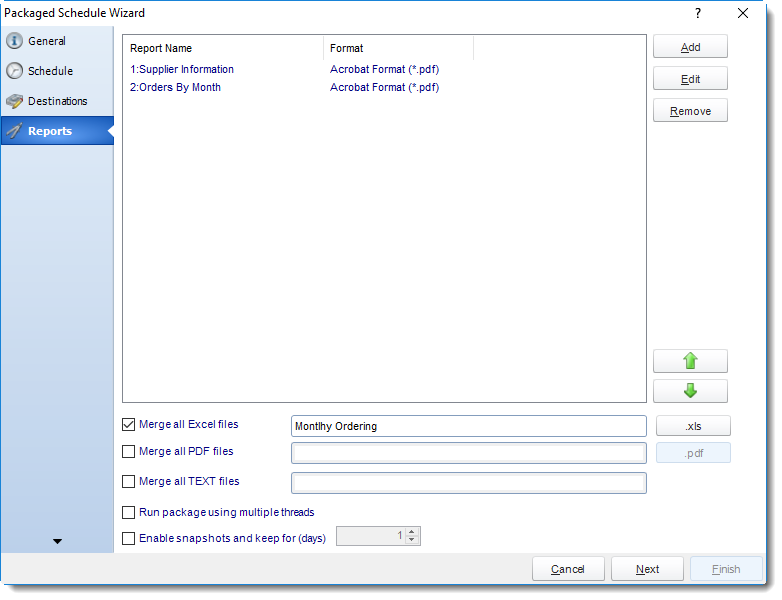

Report Wizard

SSRS. Reports Wizard Package Schedule Report Wizard in SQL-RD

A package may be created with no constituent reports and then the reports can be added later. However, you may also add reports at this stage in the wizard - and amend, delete or add some more later.

  • Merge all Text Files: Check this option to merge all text files and give the file a name.
  • Merge all PDF Files: Merge PDF outputs into a single PDF file. The reports will appear in the merged PDF in the order they are displayed in the package schedule. Checking this box will bring up additional PDF Options.

SSRS. Report Wizard Package Schedule Report Wizard in SQL-RD

  • Merge all Excel Files: SQL-RD will then merge all excel outputs in the package into a single excel file.

SSRS. Report Wizard Package Schedule Report Wizard in SQL-RD

HINT: Add Password Protection to this section in this option window rather than the individual report in the package. This will password protect the entire merged workbook.
  • Run Package using Multiple threads: This allows up to 8 reports to be exported simultaneously.
    • Each report in the package can run concurrently.
    • See Multi-threading for more info.
  • Enable snapshots and keep them for (days): Keep a copy of the report for how many days.
System resources will be shared so this will not always mean that reports will take 1/4 the normal time.
Example: You have 4 reports. Each one takes 15 minutes to export. Using a single thread, it would take 1 hour to complete the export. Using multiple threads, you would expect it to take 15 minutes for all 4. However, the sharing of your system resources by 4 reports may result in each report taking longer than 15 minutes and the total time for 4 reports may be more than 15 minutes, but it will be less than an hour
  • Click Add
  • Package Report Properties will appear.

Package Report Properties

Report Wizard

SSRS. Package Report Properties in SQL-RD.

  • Use SSRS Account: Select the SSRS Account where your report server is located and the Report Server Browser will appear.
Hint: SQL Azure Reporting Services- when writing your report, make sure you have enabled Forms Authentication. You should use the 2010 .asmx address for your reporting service URL.

SSRS. Report Server Browser in SQL-RD.

  • Report Service URL: Uncheck 'Use SSR Accounts' to enter the address of your reporting services server and click (...) button next to Report Location.
  • Report Location: Browse through the report server browser to select the desired report. Authenticate to the reports server if necessary.
Hint: SQL Azure Reporting Services- when writing your report, make sure you have enabled Forms Authentication. You should use the 2010 .asmx address for your reporting service URL.
    • Report Name: Write in the name of the package.
    • Format: Select the output format for the report.

    Datasources Wizard

    SSRS. Package Report Properties Wizard in SQL-RD

    • In this section you will authenticate to the database the report runs against, set snapshots, and other options.
    • Login Required: Set the authentication information for the report.

    SSRS. Package Report Properties Wizard in SQL-RD

    • Preview: View the report prior to execution.

    Parameters Wizard

    SSRS. Package Report Properties Wizard in SQL-RD

    • In this section, you will determine the parameters for your report (if any). If your report has no parameters, you may skip this section by clicking next.
    • There are 3 requirements in order for SQL-RD to detect your SSRS Report parameters and their parameter values:
      • The parameter must be in use in the report.
      • The parameter must be visible.
      • The parameter must be set to be prompted at run time.
    • If these three requirements are achieved, you should see the parameters in your report listed in this screen.
    • For each parameter, select from the drop down list the value the report must use. You can type a value into the field as well.
    • SQL-RD can handle SSRS Reports with Cascading parameters, or reports where you can select multiple parameter values.
      • Select All: Selecting All Available Values will run the report given all the values.
      • Specified Value: Select the value you want in your report.
      • Null Value: Set no value for this parameter.
      • Default Value: It will select the default value.
      • All Values (at run time): Any new values will automatically will be included at run time.
    Tip: If you are looking to Dynamically populate parameter values, the better choice is Dynamic or Data-Driven Schedule.

    Naming (Optional) Wizard

    SSRS. Package Report Properties Wizard in SQL-RD

    • Default Naming Convention: SQL-RD will name the output file in the following format: reportname.format extension, e.g. Catalog Report.pdf.
    • Customize the output file name: Choose your own filename or right-click and use the Insert Function to insert a value.
    • Customize output extension: Choose your own extension. This is useful for system integration. For example, the default extension for a character separated file is "CSV," but you can give your export an extension of "txt" so that the file can be read by another already existing system you may have. You may also right-click and use the Insert Function to insert a value.
    • Append date/time: This is useful for the following reasons:
      • If the filename is the same each time, and it is being exported to the same folder each time, then it will be overwritten by the latest one each time. By appending date and time to the filename, each file remains unique, and no files are overwritten.
      • You can track which reports ran and when they ran by looking at what the report is named.

    Exception Handling Wizard

    SSRS. Package Report Properties Wizard in SQL-RD

    • Check if the Report is Blank: If a report is blank because it genuinely returned no data, recipients can misconstrue this as an error with the scheduler. This option allows you to identify genuine empty reports and instruct SQL-RD on what to do with them.
    • Ignore the report and subsequent tasks: if the report is blank, do not send the report. The report will not be delivered to the destination. No custom tasks will be run.

    Method

    SSRS. Package Report Properties Wizard in SQL-RD

    • Select the Method that will determine whether a report is blank.
    • SQL Query: Select this option to use a user made query that will determine if the report is blank. If the query returns no results, the report is blank.
    • Click Build.
    • Get values from a database window will appear. For more information about Get values from database, click here.

    SSRS. Get Values from Database interface in SQL-RD

    • File size check: Assume reports is blank if size is under "X" bytes.

    SSRS. Package Report Properties Wizard in SQL-RD

    Actions

    SSRS. Package Report Properties Wizard in SQL-RD

    • Select an action from the task list. This task will be executed in the event that a schedule is blank.
    • For more information about tasks, click here.
    Tip: You can send a notification if a report is considered blank instead of sending the report. Simply select “check if a report is blank” then select “Ignore the report.” In the actions tab, select “Send Email” from the list. Compose your email and save.
    • Click OK.

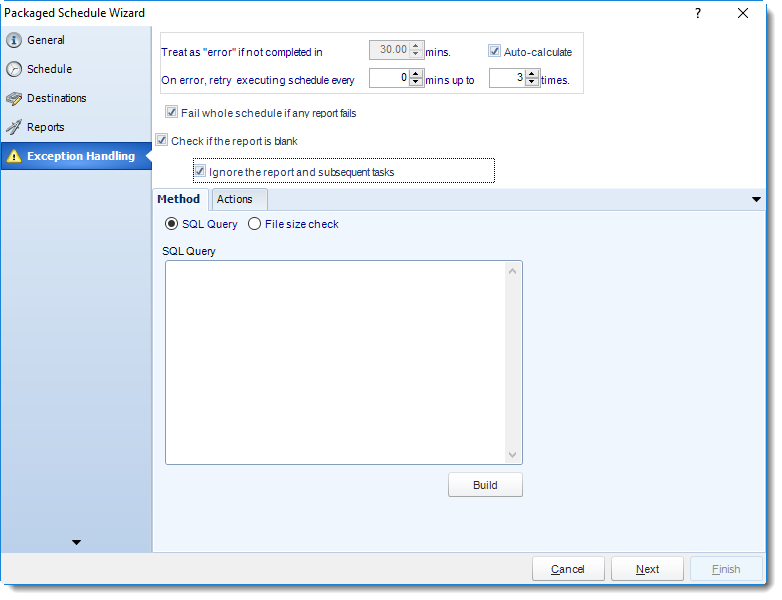

    Exception Handling Wizard

    SSRS. ExceptionHandling Wizard in Packaged Schedule Report Wizard in SQL-RD

    • Treat as “error” if not completed in X minutes: If a report takes longer than the specified amount of time to run, this option will treat the schedule as an error and follow the appropriate action. The “Auto-calculate” option instructs SQL-RD automatically determine how long a schedule should take to run the report. If it takes longer than the calculated amount of time, then it is an error.
    If manually determining the error timing, please double check the run time of the report in order to get the correct time estimate.
    • On error, retry executing schedule every: If set to 0, SQL-RD will deem the schedule as "Failed" the first time it encounters an error. The schedule will not run again until its next scheduled time. Change the value to tell SQL-RD how many times you want it to retry running the report before declaring it as "Failed."
    • Check if the Report is Blank: If a report is blank because it genuinely returned no data, recipients can misconstrue this as an error with the scheduler. This option allows you to identify genuine empty reports and instruct SQL-RD on what to do with them.
    • Ignore the report and subsequent tasks: if the report is blank, do not send the report. The report will not be delivered to the destination. No custom tasks will be run.

    Method

    SSRS. ExceptionHandling Wizard in Packaged Schedule Report Wizard in SQL-RD

    • Select the Method that will determine whether a report is blank.
    • SQL Query: Select this option to use a user made query that will determine if the report is blank. If the query returns no results, the report is blank.
    • Click Build.
    • Get values from a database window will appear. For more information about Get values from database, click here.

    SSRS. ExceptionHandling Wizard in Packaged Schedule Report Wizard in SQL-RD

    • File size check: Assume reports is blank if size is under "X" bytes.

    SSRS. ExceptionHandling Wizard in Packaged Schedule Report Wizard in SQL-RD

    Actions

    SSRS. ExceptionHandling Wizard in Packaged Schedule Report Wizard in SQL-RD

    • Select an action from the task list. This task will be executed in the event that a schedule is blank.
    • For more information about tasks, click here.
    Tip: You can send a notification if a report is considered blank instead of sending the report. Simply select “check if a report is blank” then select “Ignore the report.” In the actions tab, select “Send Email” from the list. Compose your email and save.

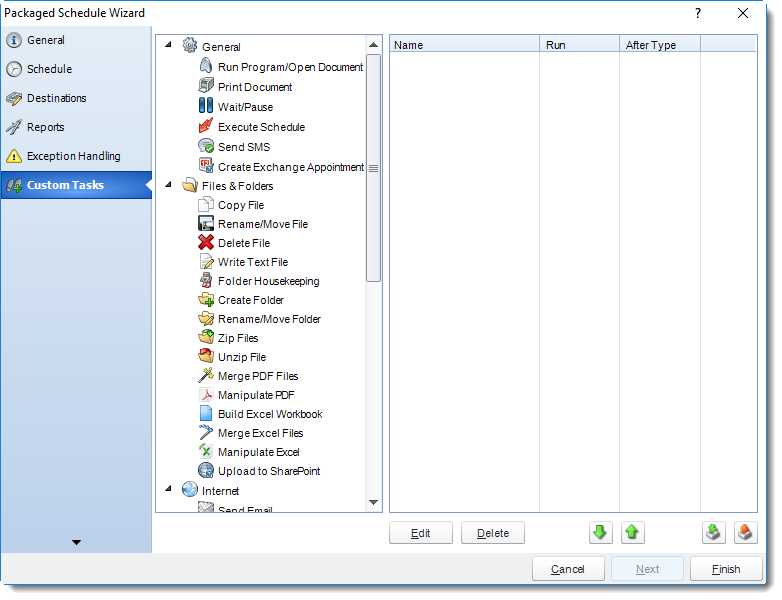

    Custom Tasks Wizard

    SSRS. Custom Tasks Wizard in Packaged Schedule Report Wizard in SQL-RD

    • In the section you have the option of setting up custom tasks. Custom tasks are business process automation tools that can be auto triggered before or after a report runs.
    • For more information on Custom Tasks, click here.
    • If you have no desire to add a Custom Task, you can click finish to complete the schedule.

    Package Report Schedule Context Menu

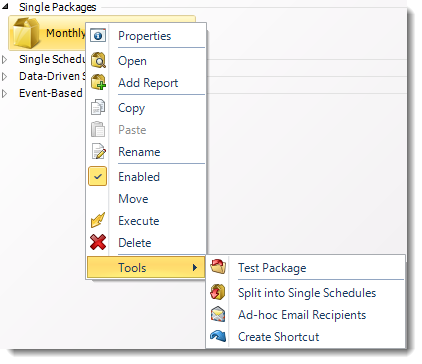

    SSRS. Package Report Schedule Context Menu in SQL-RD

    Right-Click on a schedule to see the following actions:

    • Properties: Edit the schedule from here. Or you can just double click on the schedule.

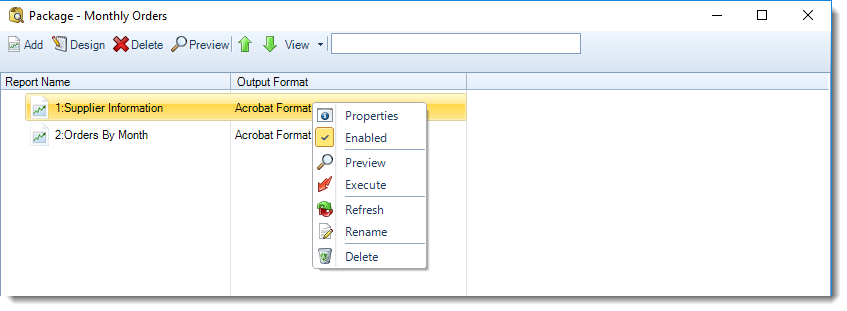

    • Open: This will open the package and show its constituent reports.

    SSRS. Package Report Schedule Context Menu in SQL-RD

    • You can right-click on each of the constituent reports to see the context-sensitive menu shown in the picture above.
      • Enabled: Use this to enable or disable the constituent report.
      • Refresh: Pulls through changes to just that report which were made outside SQL-RD.
      • Rename: Renames the selected report.
      • Preview: Generates a preview of the selected report.
      • Delete: Deletes the selected report from package.
      • Properties: Displays the configuration properties of just that report.
    • Add Report: Use this to add one or more reports to an existing package.
    • Copy: Use this to copy the schedule. Right-click in the "white space" of the folder you wish to copy it to and select Paste button.
    • Rename: Rename the package.
    • Enabled: Schedules are enabled when there is a check icon beside this option. To stop a schedule from running, or to "pause" it for a while, select this option to remove the check icon. Disabled schedules will not run until they are enabled again.
    • Move: Use this option to move the report into an existing package.
    • Execute: This button will execute the schedule immediately. Note that the next run date and time is not moved on as a result of a manual execution. They only move on if the schedule is run automatically by one of the schedulers .
    • Delete: Selecting this option will delete the schedule.
    • Test Package: Use this option to test the schedule and export it to selected "test" destinations.
    • Split into Single Schedules: This will split all the constituent reports in the package into Single Report Schedules.
    This process will automatically delete the package once the splitting process is completed.
    • Ad-Hoc Email to Recipients: Select this option to send an ad-hoc email to all recipients of this package. You can use this to alert recipients to a planned system outage, or any other useful information.
    • Create Shortcut: Use this option to create a shortcut you can save in any location on your PC. Execute the shortcut to execute the schedule in SQL-RD.

    Package Report Schedule Properties

    SSRS. Package Report Schedule Context Menu in SQL-RD

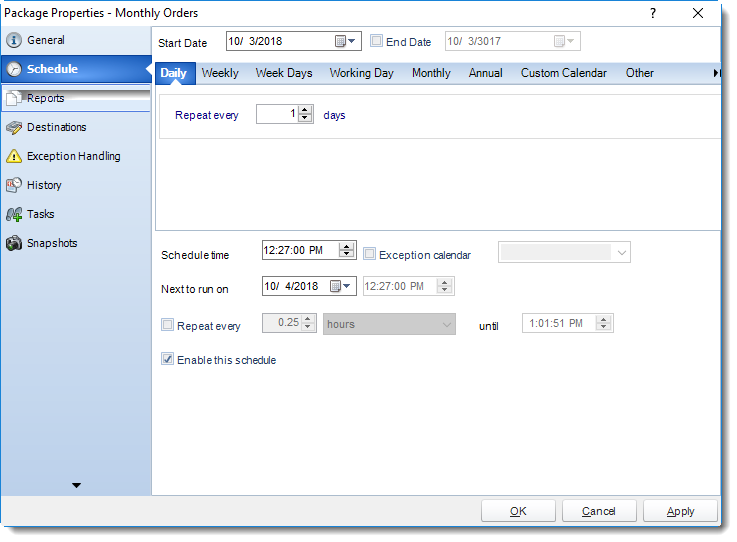

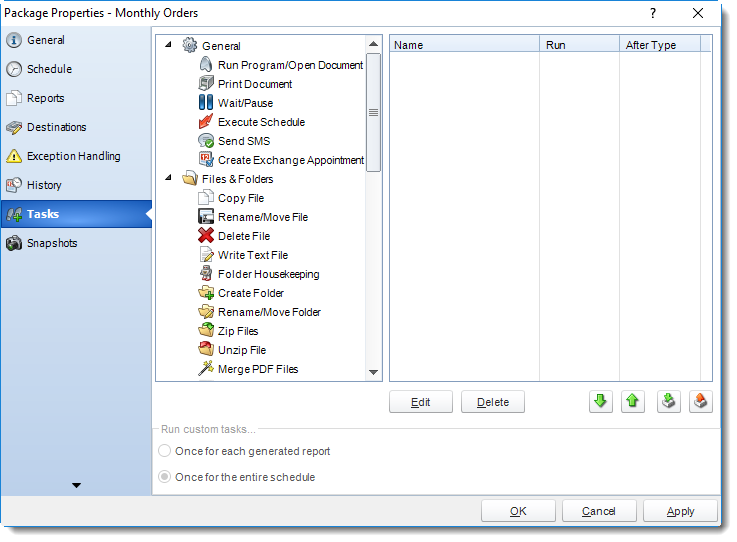

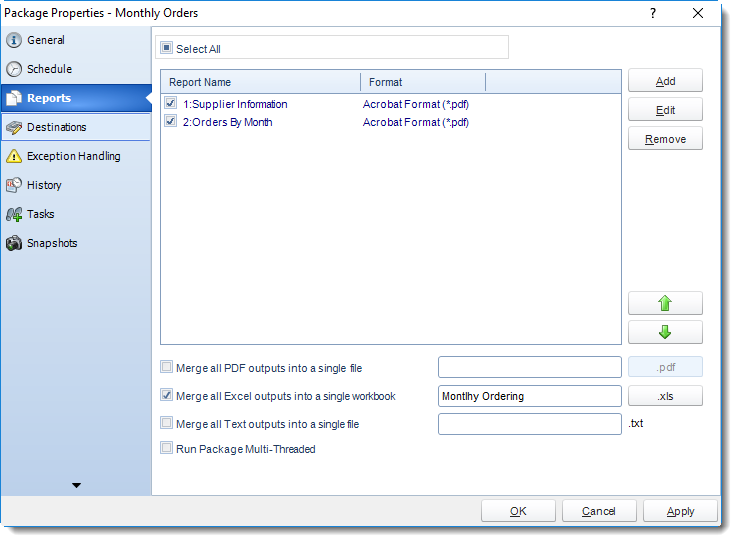

    • To access your schedule properties, right click on a schedule and select properties.
    • Similar to the schedule wizard, you adjust settings to your schedule such as timing, error handling, or custom tasks.

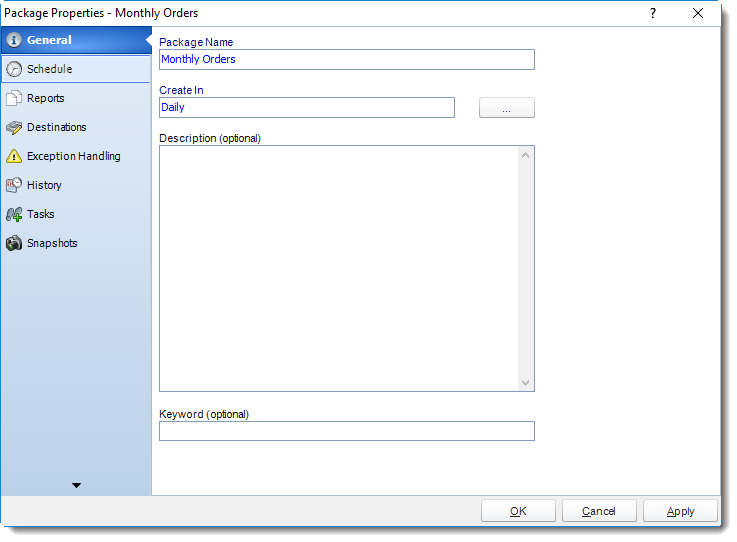

    • General

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

    • Schedule

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

    • Reports

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

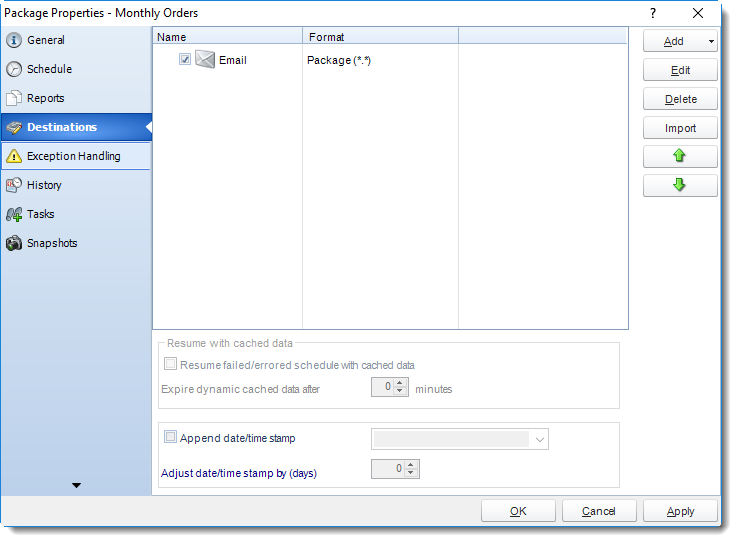

    • Destinations

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

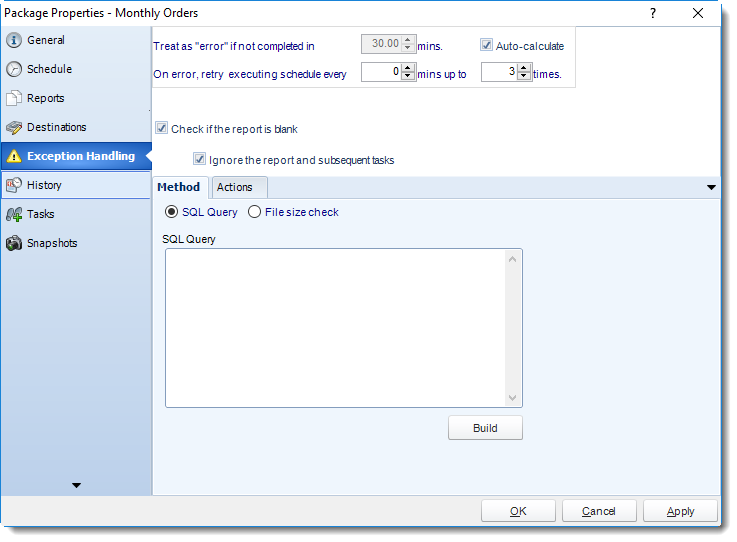

    • Exception Handling

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

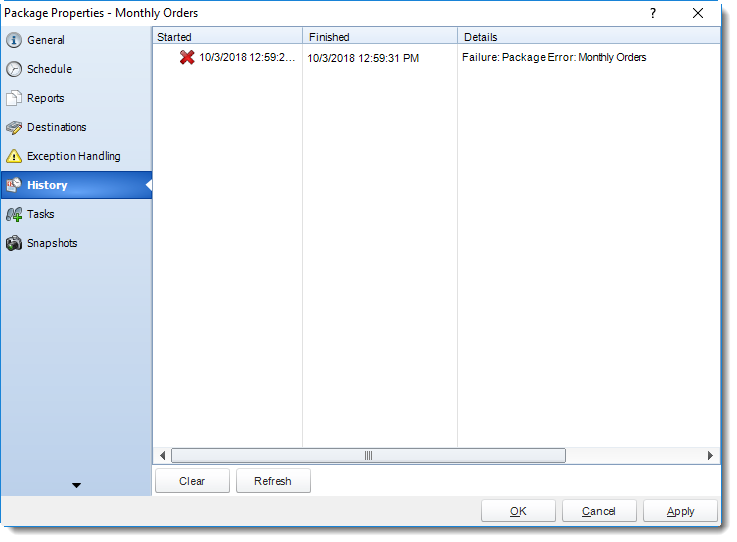

    • History: Review the schedules history. Successes, failures, and other data is located here.

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

    • Tasks

    SSRS. Package Report Schedule Properties Wizard in SQL-RD

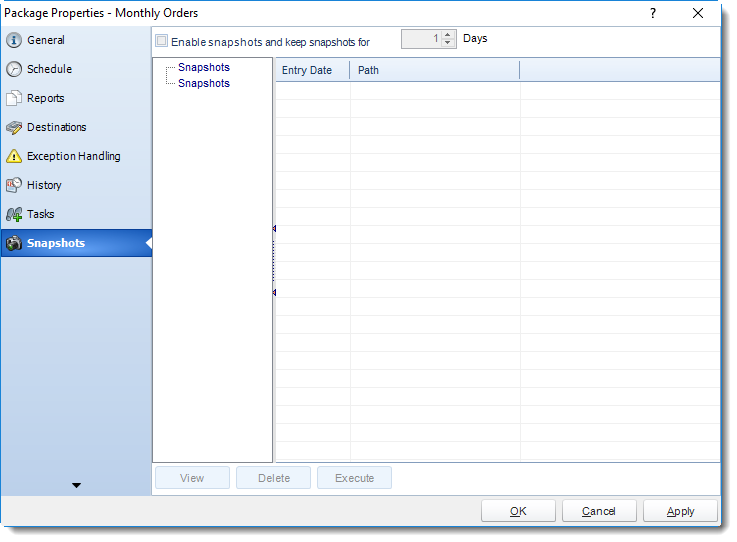

    • Snapshots: A snapshot is a copy of each report a schedule or a package generates. Keeping snapshots enables you to resend past reports without generating them afresh - especially if the data has changed in the meantime.
      • Simply select the number of days to keep the snapshots.

    SSRS. Package Report Schedule Properties Wizard in SQL-RD
