How do I use Data Items in CRD?

The Data Items button provides the ability to set up a number of data queries that CRD will then store and allow you to call up for use when required.

Data Items

  • Go to Data Items.

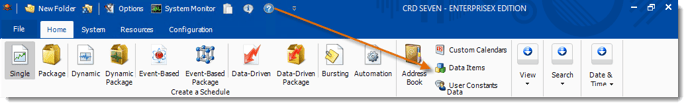

Crystal Reports: CRD Home Menu.
Crystal Reports: Data Items in CRD.

Create a new Data Item

  • Click Add.
Crystal Reports: Data Items in CRD.
  • Enter a name for the new data item.
  • Select a DSN, provide any necessary credentials and click Connect.
Crystal Reports: Data Items in CRD.
  • You will then be presented with the Get Values from Database module where you can build a query using the intuitive simple setup wizard, or paste in your own query in the Query field.
Crystal Reports: Get Values from Database interface in CRD.



Crystal Reports: Data Items in CRD.



Crystal Reports: Data Items in CRD.

Options

  • Allow multiples values to be returned by query: This option will separate different values.
  • Replace NULL values with the default value of: This option will pass multiple values into Crystal Parameters.
  • If no records found then returned the default value of: This options is to write a description for the records that will appear in blank.
  • Field delimiter (optional): The fields will be surrounded with the special characters that you desired.

The Data Item is successfully created.

Edit a Data Item

Crystal Reports: Data Items in CRD.
  • Select a data item and click Edit.
  • You will be presented with the Get Values from Database module where you can modify the query using the intuitive simple setup wizard, or paste in your own query.
Crystal Reports: Data Items in CRD.

Remove a Data Item

Crystal Reports: Data Items in CRD.
  • Select a data item and click Remove.

Using Data Items

  • With the Insert Menu, you can insert data items into various fields in CRD.
  • If you have several data items, you can use the search field to quickly locate the data item you need.
Crystal Reports: Data Items in CRD.
