How do I set up an Email Destination in ATRS?

Using the Email Destination you can send Tableau reports embedded in emails; or send emails in HTML or plain text with reports as attachments. You can use Inserts to customize the message body, use mailing lists & much more.

Destinations - Email

  • In the Schedule Wizard, go to Destinations.

  • Click Add and select Email.



Customize Sender Details

Most mail servers today will no longer allow you to send an email if you attempt to use this function. This restriction is designed to stop spammers from hijacking or spoofing email accounts.

If you use the "Customize sender details" function and find that your emails are not being delivered, your mail server security settings are almost certainly the reason for the failure.

We recommend that, instead of using this function, you set up a number of email accounts. Then, select the mail server you want from the dropdown in the schedule.

Email

To, CC, and BCC:

  • Choose from:
    • MAPI (Outlook) address book (Only available if you are using MAPI): Select one or more email addresses or groups.
    • ATRS Address Book: Select one or more email addresses or groups.
    • Database Source: Build a SQL query to pick the email address or addresses from a database.
    • Text File: Store your email addresses as a standard mailing list in a text file (Format: no delimiters, each email address on a new line)
    • Constants
    • Or simply type in the email address.
You can use "Inserts" at any time if required. For more information about Inserts, click here.
  • Subject: Enter a subject Or right-click and select Insert to insert constants, database values and defaults.
  • Attach: Click to select an attachment. Or right-click and select Insert to insert constants, database values and defaults.
Hint: Web addresses can be attached as well.
  • Body: Type in your email. Or right-click and select Insert to insert constants, database values and email defaults.
  • Mail Format: Choose from HTML or Text.
    • Text Format: In this format it will be just plain text.

Crystal Reports: Email Destination in CRD.

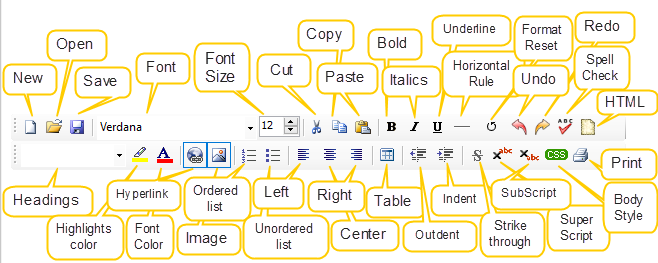

  • HTML Format: In this format you can format the message.

Crystal Reports: Email Destination in CRD.



Crystal Reports: Email Destination in CRD.

  • You can enter HTML tags by clicking the HTML icon.

Crystal Reports: Email Destination in CRD.

  • Body Style (CSS): If you want to specify the format that you want, click CSS and you may choose the type of format and change settings accordingly.

Crystal Reports: Email Destination in CRD.

  • Embed Report: Check this option to embed the report into the email body. When using MAPI messaging you can only embed reports in Text format. To embed reports in HTML format you will need to change your messaging type to SMTP.
    • You can click (...) button to edit the output format options as required.
    • By default, if a report is embedded in the email body, there will be no attachment.
    • If you are uncertain whether the recipient can read html formatted mails, you can click Include Attachment so that the recipient receives an additional attachment of the same report in any other format e.g. a PDF, word document, etc.
  • Mail Server: This can be changed if the email is to be sent from a different server than the default one that was originally set up.
  • Delivery receipt: Check this option if a delivery receipt is required. Use it if you require Custom Actions to be used once a receipt has been/has not been received.
  • Customize Sender Details: This is where the name of the sender and the sender email may be changed. For example, it could be set to Donotreply@mycompany.com.

For information on the format tab, click here.

For information on the naming tab, click here.

Using Chat GPT in an Email Body

Step 1 - Create an email

Once you have finished addressing the email, make sure to change the format of the email body to HTML.  Then, simply click on the Chat GPT symbol to open the chat GPT window.

Step 2 - Fill out the Chat GPT parameters

For example; email bodycrd chat gpt email 2

crd chat gpt email 3



Role: The default role is set as "System," but feel free to customize it to give Chat GPT its own unique personality.

Model: Select which version of Chat GPT you would like to use for the response.
Account: Select the API Account to use for the response.

Step 3 -  Generate a Response

Click the "Generate Response" button to effortlessly generate the email body using Chat GPT.

crd chat gpt email 4



Step 4 -  Save the Response

Click on the "Save" button to save the response and go back to the email editing screen.

You can now see your Chat GPT email body. From here, you have the ability to make edits and add customizations as needed.

Step 5 -  Save the email

After making all the necessary changes, click on the 'OK' button to save the email.
