How to create a Single Data-Driven Tableau schedule in the ATRS Web Application?

This article will provide a step-by-step guide to building and deploying a Single Data-Driven Tableau schedule in the ATRS Web Application.

Step 1

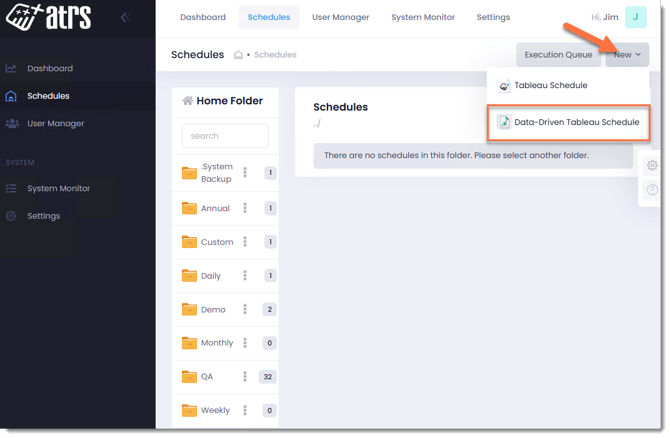

To create a new schedule for a Single Data-Driven Tableau Report in the Web Application, begin by selecting the "New schedule" drop-down menu. From there, choose the option for "Data-Driven Tableau Report Schedule".

You will then see the Scheduling Screen where you can configure the schedule settings.

Step 2

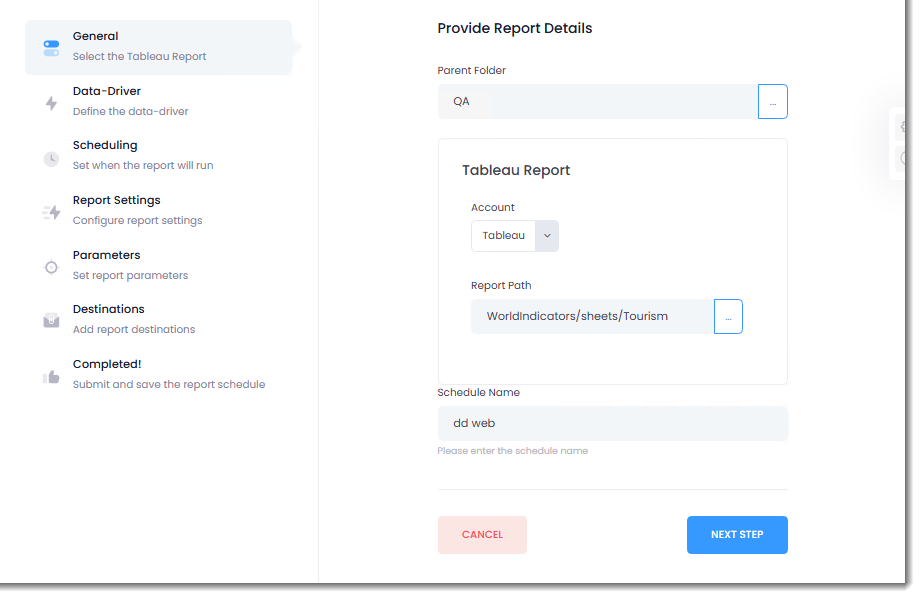

General Tab: In the "Provide Report Details" section, click on the (...) option and select your Parent Folder from the list provided.

Step 3

In the "Tableau Report" Section

- Choose the required the Tableau account needed to access the Tableau report that you want to Schedule.

- Choose the Report Path that holds the report you would like to use.

-Give the Schedule a name.


Step 4

Proceed to the Data-Driver tab by clicking the "Next Step" button.

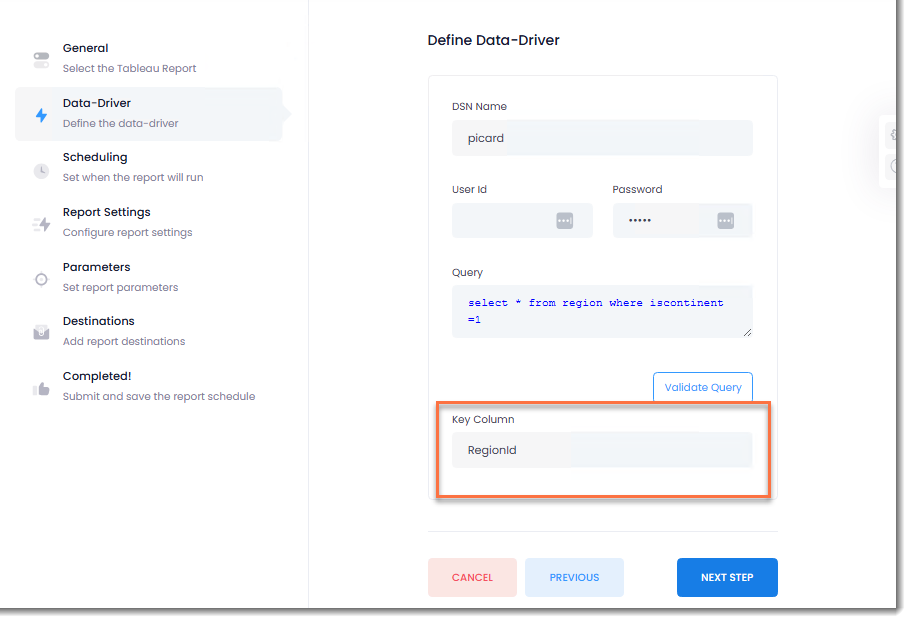

In the Data-Driver tab

- Select your DSN.

-Enter your User ID & Password.

-Enter your Query.



When you have entered all of this information in, select Validate Query

A pop up will appear stating whether or not the query validated successfully. Click OK.

Step 5

The Key Column box will now appear for you to select the Key Column.

Step 6

Proceed to the Scheduling Tab by clicking the "Next Step" button.

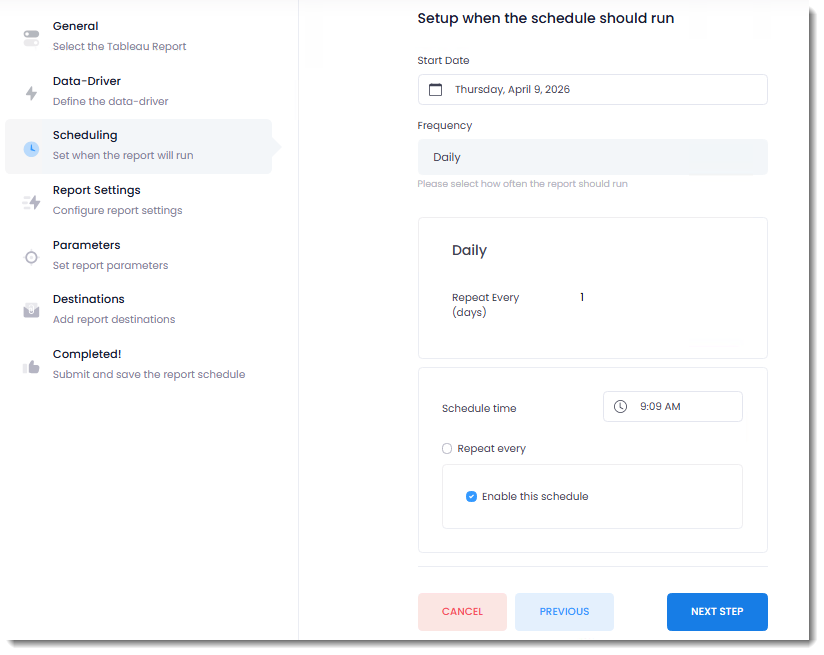

In the "Setup when the schedule should run" section, you can select the start date for your schedule by clicking on the calendar icon. Choose the specific date when you want the schedule to begin running.

-Set the Frequency for the schedule, whether it's daily, weekly, or monthly. This frequency setting determines how often the schedule will run.

-Select a Schedule Time for when the schedule should execute. If you need this schedule to repeat multiple times throughout the day, you can select the "Repeat Every" option.

-Check Enable this Schedule to ensure that the schedule will run when it is supposed to in the future.

Step 7

Proceed to the Report Settings Tab by clicking the "Next Step" button.

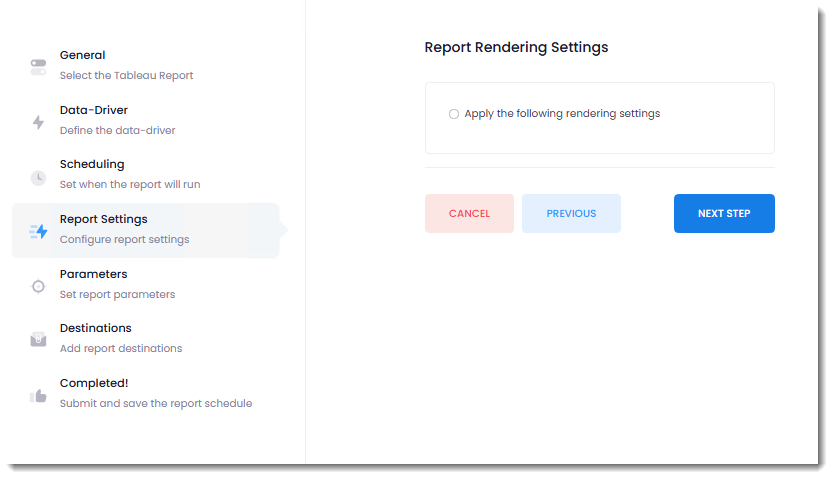

In the Report Rendering Settings section, you have the flexibility to customize and apply specific settings to the report according to your preferences.

-If you prefer not to export all pages of the report, you have the option to specify which pages you want to export in this section.

Step 8

Proceed to the Filters Tab by clicking the "Next Step" button.

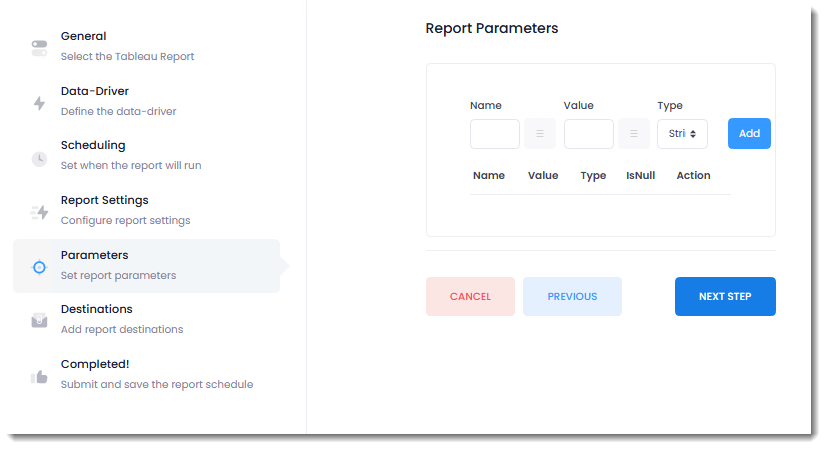

To add a Report Parameter, either enter the information manually or click the three lines by each box to fill the box with a data-driven insert.

Once you have your parameters click Add.

Step 9

Proceed to the Destinations tab by clicking the "Next Step" button.

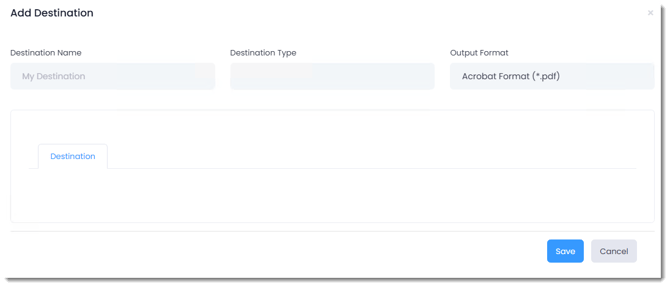

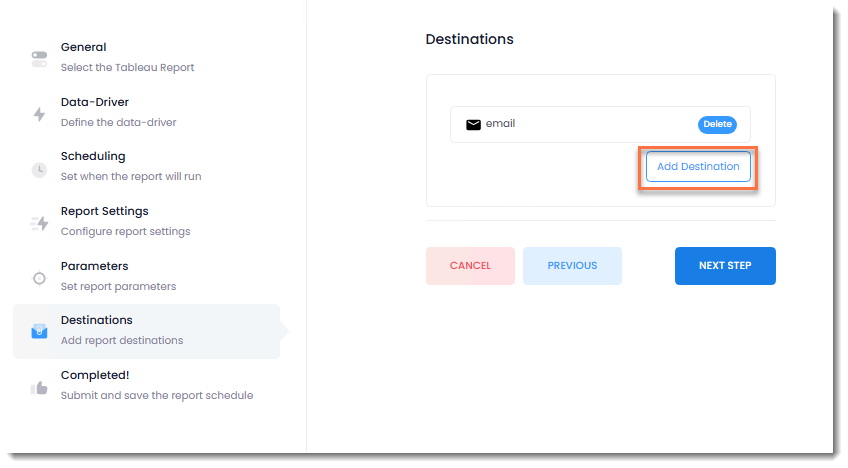

In the Destinations Section, click Add Destination to add a destination for the report. The following Screen will be displayed.

Provide a Destination Name, choose between Email or Disk Destination, and select the desired Output Format.

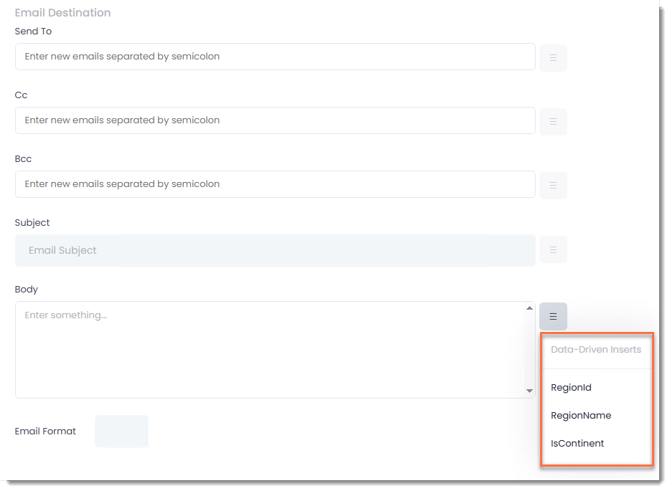

You also have the option to incorporate Data-Driven filters into the body of the destination.

Save your destination by clicking on the "Save" button to close the screen.

Step 10

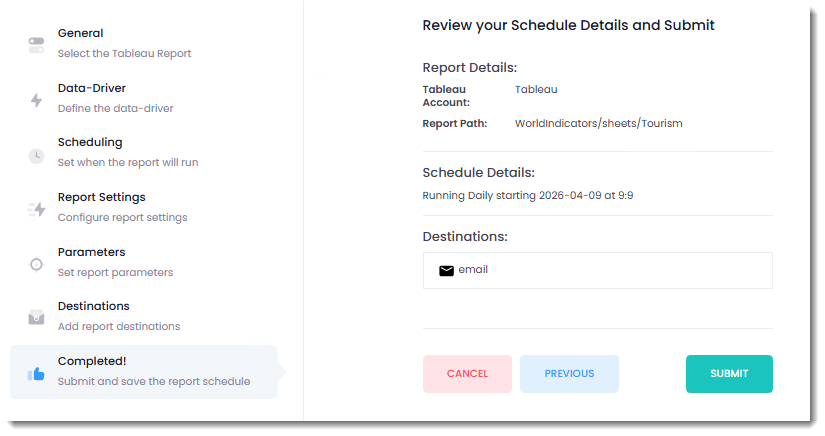

Proceed to the Completed Tab by clicking the "Next Step" button.

After reviewing the schedule setup and confirming that no changes are needed, simply click on the Submit button to save the schedule.



Once the Schedule has been created the following screen will be displayed.

You have now created a Data-Driven Tableau schedule in the ATRS Web Application.
