How do I use Data-Driven Schedules for Power BI Service Paginated Reports in PBRS?

A data-driven schedule allows you to drive all variables of your reporting requirements (filters, destinations, output formats, etc.) from database tables and queries at run time. Burst your reports out to multiple formats and recipients.



This article applies to:

  • Power BI Service Paginated Reports (Cloud - Power BI Service)

Data-Driven Schedules for Power BI Service Paginated Reports

A data-driven schedule allows you to drive all variables of your reporting requirements (filters, destinations, output formats, etc.) from database tables and queries at run time. You can also use any static text and default values should you wish. You can use Data-Driven schedules for a number of scenarios. Use a data-driven schedule for bursting reports based on filter values to specific formats like PDF, Excel and so on.

Here are some examples:

  • Distribute a report to a fluctuating list of recipients. For example, you can distribute a report throughout a large organization where recipients vary from one month to the next, or use other criteria that determines group membership from an existing set of users. E.g. select * from mytable where firstname = ‘john’ will generate the report and distribute only for records where the recipient’s first name is John.
  • Filter the report output using report filter values that are retrieved at run time. For example, the filter value returned from the table for the Last Name will be “Doe” for John Doe and “Smith” for John Smith.
  • Determine the delivery type and report format dynamically at run time. For example, John Smith gets the report as a PDF file by email with a customized email body and John Doe gets the report as an excel spreadsheet by FTP uploaded to his webserver.

The following simple example will illustrate the process of creating a Data-Driven Schedule.

Scenario: You have a report which has a large number of filter and destination combinations. Representing the combinations in a table may look something like the example below (Yellow = filters)

Power BI and SSRS. Data Driven Schedule example
  • You need to have the report run once for each record. The filter values entered in the table above should populate the filters in the report and the report should be delivered to the destinations shown in the table.
  • Please note that with the above data when the schedule runs, the following will occur:
    • John Doe will receive only one email for the reports from sectors 1 and 3. He will also get the reports from sectors 2, 3 and 34 delivered to his reports disk location.
    • Peter Crimble will have his report printed on the Printer he specified.
    • Jorge Minola will have a copy of his report sent to John Doe to the disk location he specified and a copy uploaded to his FTP server and folder.
    • Anil Maharaja will receive an email as requested.
    • John Wu will have his report delivered to his email and FTP server as requested.
Note that as the data changes in the database to reflect the requirements, the reports will be delivered as necessary without requiring any changes to the schedule in PBRS.
Using a Data Driven schedule PBRS will reel through the database table and generate and deliver a report for each record using the information provided.
The data driver allows for busting reports to different formats and different destinations as well as defining other more traditional values like filters.

How do I create Data-Driven Schedule for Power BI Service Paginated Reports?

  • Go to Data-Driven and go to For Power BI Service and select Paginated Reports.
Power BI and SSRS. Data Driven Schedule in PBRS



Building a Data Driver Wizard

Power BI and SSRS Reports: Data-Driver Wizard in Data-Driven Paginated Reports in PBRS.

  • The Data Driver is where you set up the source for data for your data-driven reports. If your data source or data selection criteria changes this is where you will need to make any required changes. You can either select SQL Data-Driver or JSON Data-Driver

SQL Data-Driver

Power BI and SSRS Reports: Get Values from database in PBRS.
  • ODBC Datasource Name: Drop down and select a DSN.
We strongly recommend System DSNs so that the DSN is visible to PBRS even when the user associated with the DSN is logged off.
All communication to databases (including Access databases) is done through ODBC, so you must setup a system DSN to the database before you can use this facility.
When setting up DSNs we recommend (if possible) that you use Windows Authentication (Trusted Connection). This ensures that your username and password are not required to be stored in PBRS (more secure) and overcomes a large number of security restrictions which Windows places on DSNs. When using Windows Authentication, make sure that the PBRS NT service user (or background application service user) has full rights to the database otherwise, though you will connect when you are logged in, automated scheduling will fail if the Service user has not got rights to the database.
When setting up a DSN to a SQL server, you must ensure that the "Default Database" setting is set to the database you are connecting to (Windows defaults this to "Master").
  • UserID: Enter the User ID PBRS should use to log on to the database.
  • Password: Enter the password associated with the above user.
  • Connect: Click Connect to connect to the Database.
  • SQL Server Account: Check this option to use your SQL Server Account.

You must add the SQL Server Account in Integrations.

  • Select the table from the database that holds the required data. You can refine your selection query by using the simple or advanced tabs.
  • Click Parse.
  • For more information of "Get Values From Database" interface, click here.
  • Click OK.

Power BI and SSRS Reports: Data-Driver Wizard in Data-Driven Paginated Reports in PBRS.

  • Click Build to specify the data selection criteria. This will return you to the Build Data Driver tool.
  • Key Column: Select the key column for the data that is returned for the reports. The information that drives the schedule is required to have a key column so that each row in the table is uniquely identified by the value in this column. The key column is there as an identifier which is used to troubleshoot in cases where there is a problem with one of the records.

JSON Data Driver

Power BI and SSRS Reports: Data-Driver Wizard in Data-Driven Paginated Reports in PBRS.

  • Enter your JSON string and click Validate.

Power BI and SSRS Reports: Data-Driver Wizard in Data-Driven Paginated Reports in PBRS.

  • Row Identifier: Select the row identifier for the data collection for the reports. The information that drives the schedule is required to have a row identifier so that each row in the table is uniquely identified by the value in this column. The row identifier is there as an identifier that is used to troubleshoot in cases where there is a problem with one of the collections.
  • Use up to 'x' threads to run this schedule: Check this option to allow x amount of threads to be exported simultaneously.
  • Group reports by email address: You can instruct PBRS to group reports that are sent to the same email address. Please note that enabling this option disables the ability to embed the reports in the email body for email destinations.

Click Next to continue to the next wizard section.

General Wizard

Power BI and SSRS Reports: General Wizard in Data-Driven Paginated Reports in PBRS.

  • Create In: This section is to select the folder where you want to create a single report in.
  • Power BI Account: This section is to select what Power BI Account you want to create the single report in. In this section, you may add a new account in the Add New button.
  • Select Report: Click on the drop-down menus to navigate to the required report.
  • Schedule Name: Write in the name of the single schedule.
  • Description (optional): You may write a short description to help other users identify exactly what this schedule is and what it is expected to do.
  • Keyword (optional): Enter some keywords which can be used later by Smart Folders to identify this schedule.

Click Next to continue to the next wizard section.

Schedule Wizard

Power BI and SSRS Reports: Schedule Wizard in Data-Driven Paginated Reports in PBRS.

In this section, you will decide when the report will execute. There are a variety of options:

  • Daily: Run a report every day or at a frequency of days.
    • Sub options: Repeat every X Days.

Example: Run the schedule every 3 days.

pbrs schedule daily

  • Weekly: Run a report on a weekly time frame.
    • Sub options: Repeat every X weeks.

Example: Run the schedule every 2 Weeks.

  • On: Select the specific days of the week the schedule will run. If only once a week, select only the day of the week it will run.

Example: Run every Monday, Wednesday, and Friday.

pbrs schedule weekly

  • Week Days: Run the schedule Monday through Friday.

pbrs schedule week days

  • Working Day: Run the schedule starting on a specific day of the month. Indicate which day of the month the schedule will run. E.G. run the schedule on the 4th working day of the month.

pbrs schedule working day

  • Monthly: Run the schedule on a monthly time frame.
    • Use the following options: Checking this box will enable you to select frequency options such as the “last Thursday of the month.” Also you can include or exclude specific months from the schedule.

pbrs schedule monthly

  • Annual: Run the schedule every year at a specified time.

pbrs schedule annual

  • Custom Calendar: Select the custom Calendar you wish to use. You can create a new custom calendar from the menu as well. Please see Custom Calendars for more information.

pbrs schedule custom calendar

  • Other: Other scheduling options.
    • Run Schedule every X Minutes, hours, days, weeks, months, years.

pbrs schedule other

  • None: No scheduling is required for this item.

pbrs schedule none

  • Start Date: Enter the desired starting date for the schedule. This section can be the current date (providing schedule time has not already passed) or a date in the future.
  • End Date: If the schedule is due to end after a certain date enter that here. If the schedule is to run indefinitely, then leave it blank.
  • Schedule time: On the Next Run date, the package will run at this time.
  • Exception Calendar: Choose a calendar that will instruct the schedule to NOT run on those specified days. Please see Custom Calendars for more information.
  • Next to run on: The package will next run on this date.
  • Repeat Every: Rerun the package every x minutes from the scheduled time until your specified time.

For example, you can set up a daily package to run every day at 8 am and to run every hour until 5 pm.

  • Until: After this date, there will be no automated scheduling of this package.
  • Enable this Schedule: Uncheck this option to Disable the package. Disabled packages are not deleted, but they do not execute automatically. You can re-start the automatic scheduling at a later date by checking this option again. Or right-clicking this schedule from the main screen and selecting Enable.

Click Next to continue to the next wizard section.

Parameters Wizard

Power BI and SSRS Reports: Parameter Wizard in Data-Driven Paginated Reports in PBRS.

  • In this section, you will determine the parameters for your report (if any). If your report has no parameters, you may skip this section by clicking next.
  • With PBRS, you can Data Drive any parameter in your report. Ensure the filter values for each record are listed in your database.
  • Using Data-Driven Inserts you can pull these values into your report.
  • Drag and drop your Data-Driven inserts into the desired filter fields. If you do not wish to enter a data-driven value in your filter, you can still manually type a value.
  • Parameter Name: Enter the parameter name of your report.
  • Parameter Value: Enter the parameter value of your report.
  • Parameter Type: Use the drop-down menu to select the parameter.
  • Click Add to add the parameter value.
  • Import: Use this option to add parameter values using a URL from Power BI Service to import a parameter to this report.

Power BI and SSRS: Import Parameter from Power BI URL in PBRS.

  • Click OK.

Power BI and SSRS: Parameter Wizard in Single Schedule for Paginated Reports in PBRS.

  • Preview: View the report output given the selected parameters.

Click Next to continue to the next wizard section.

Destination Wizard

Power BI and SSRS Reports: Destination Wizard in Data-Driven Paginated Reports in PBRS.In this section, you will decide where your schedule will be delivered. The list in the center will display the list of destinations you have added to the schedule. You can organize the various destinations’ order by clicking on the green up and down arrows.

  • Add: Click here to add a destination. You have several options which are: Email, Disk, Fax, FTP, ODBC, Printer, Sharepoint, SMS, and Dropbox.
pbrs destinations
  • Edit: Select a destination and click to edit it's properties. Or simply double-click on the destination.
  • Delete: Select a destination and click this button to delete it.
  • Import: Click here to import from the list of default destinations.

Customizing the Destination

With the Data-Driven Schedule, you can determine the delivery method of your report based on your data. In your table, specify the delivery method by creating a column for each delivery type (FTP, SharePoint, Email etc.). For each record specify their email, fax number, and so on.

Power BI and SSRS. Data Driven Schedule example

Tip: For email destinations, simply add a semicolon after an email address to send the same instance of the report to another email address.

  • Data driving the Report's Distribution.
  • As mentioned above, PBRS will pull delivery data from your database.
  • In this example, we will be using email addresses found in the table.
  • With Data Driven inserts, simply drag and drop the field that indicates your desired destination (email in this case).
pbrs custom tasks internet email
  • Now PBRS will deliver a unique report based on a corresponding email address.

Customize Recipient Messaging

  • You can also customize the messaging the recipient receives. Using Data-Driven Inserts, PBRS will automatically pull data from your table and use it to customize the subject, body or report format.
  • Simply drag and drop fields from your table to the desired position.

For example, to customize an email greeting, type the greeting, and add the recipient's name as shown above.

Click Next to continue to the next wizard section.

Exception Handling Wizard

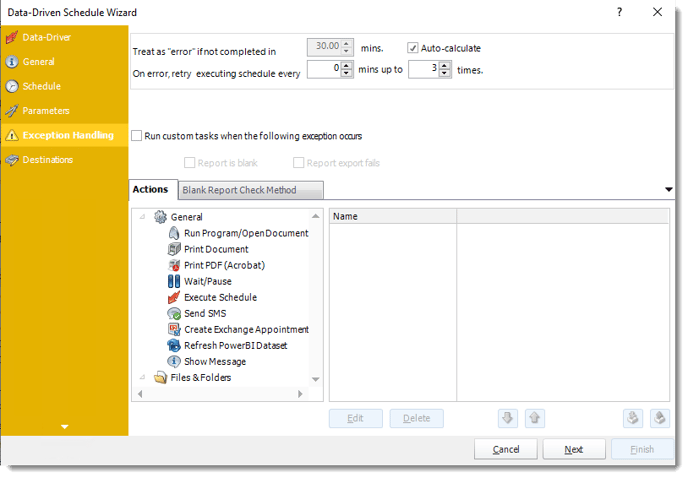

  • Power BI and SSRS Reports: Exception Handling Wizard in Data-Driven Paginated Reports in PBRS.Treat as “error” if not completed in X minutes: If a report takes longer than the specified amount of time to run, this option will treat the schedule as an error and follow the appropriate action. The “Auto-calculate” option instructs PBRS to automatically determine how long a schedule should take to run the report. If it takes longer than the calculated amount of time, then it is an error.

If manually determining the error timing, please double-check the run time of the report in order to get the correct time estimate.

  • On error, retry executing schedule every: If set to 0, PBRS will deem the schedule as "Failed" the first time it encounters an error. The schedule will not run again until its next scheduled time. Change the value to tell PBRS how many times you want it to retry running the report before declaring it as "Failed."
  • Run custom tasks when the following exception occurs: Check this is option to enable the following options.
    • Report is Blank: If a report is blank because it genuinely returned no data, recipients can misconstrue this as an error with the scheduler. This option allows you to identify genuine empty reports and instruct PBRS on what to do with them.
    • Ignore the report and subsequent tasks: If the report is blank, do not send the report. The report will not be delivered to the destination. No custom tasks will be run.
    • Report exports fail: If a report export fails, you can receive a notification or run a tasks that the report failed to execute.

Actions

Power BI and SSRS: Exception Handling Wizard in Single Schedule for Paginated Reports in PBRS.

  • Select an action from the task list. This task will be executed in the event that a schedule is blank.
  • For more information about tasks, click here.

You can send a notification if a report is considered blank instead of sending the report. Simply select “check if a report is blank” then select “Ignore the report.” In the actions tab, select “Send Email” from the list. Compose your email and save.

Blank Report Check Method

Power BI and SSRS: Exception Handling Wizard in Single Schedule for Paginated Reports in PBRS.

  • Select the Method that will determine whether a report is blank.
  • SQL Query: Select this option to use a user made query that will determine if the report is blank. If the query returns no results, the report is blank.
    • Click Build.
    • Get values from a database window will appear. For more information about Get values from database, click here.

pbrs get values from database

  • File size check: Assume reports are blank if size is under "X" bytes.

Click Next to continue to the next wizard section.

Refresh Datasets Wizard

Power BI and SSRS Reports: Refresh Datasets Wizard in Data-Driven Paginated Reports in PBRS.

In this section select the datasets to refresh before the report is executed.

  • Power BI Account: Select the account to refresh datasets.
  • Workspace: The path to the required report.
  • Dataset: Select the dataset.
  • Notification Options: Receive a notification after the report is executed, the report failed to execute, or do not receive a notification.
  • After refreshing the datasets above, wait 'X' seconds before running the report.

Click Next to continue to the next wizard section.

Custom Task Wizard

Power BI and SSRS Reports: Custom Task Wizard in Data-Driven Paginated Reports in PBRS.In the section, you have the option of setting up custom tasks. Custom tasks are business process automation tools that can be auto-triggered before or after a report runs.
  • For more information on Custom Tasks, click here.
  • If you have no desire to add a Custom Task, you can click finish to complete the schedule.

Data-Driven Schedule Context Menu

Power BI and SSRS Reports: Data-Driven Schedule Context Menu.

  • Right-Click on a schedule to see the following actions:
  • Properties: Edit the schedule from here. Or you can just double click on the schedule.
  • Copy: Use this to copy the schedule. Right-click in the "white space" of the folder you wish to copy it to and select the Paste button.
  • Rename: Rename the package.
  • Enabled: Schedules are enabled when there is a check icon beside this option. To stop a schedule from running, or to "pause" it for a while, select this option to remove the check icon. Disabled schedules will not run until they are enabled again.
  • Move: Use this option to move the report into an existing package.
  • Preview: Preview the report before execution.
  • Execute: This button will execute the schedule immediately. Note that the next run date and time is not moved on as a result of a manual execution. They only move on if the schedule is run automatically by one of the schedulers.
  • Delete: Selecting this option will delete the schedule.
  • Execute On: Use to option to execute the schedule to another collaboration server.
  • Test: Use this option to test the schedule and export it to selected "test" destinations.
  • Convert To Package: This button will move this report into a package. The package will have the name of the single schedule report.
  • Ad-Hoc Email to Recipients: Select this option to send an ad-hoc email to all recipients of this package. You can use this to alert recipients to a planned system outage, or any other useful information.
  • Create Shortcut: Use this option to create a shortcut you can save in any location on your PC. Execute the shortcut to execute the schedule in PBRS.
  • Ad-Hoc View: This button allows you to preview the report.

Data-Driven Schedules Properties

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • To access your schedule properties, right-click on a schedule and select properties.
  • Similar to the schedule wizard, you adjust settings to your schedules such as timing, error handling, or custom tasks.
  • General

You can view the Schedule Unique ID in the General Wizard.

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Schedule

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Parameters

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Destinations

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Exception Handling

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Refresh Datasets

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Tasks

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Sharing: Here you can share this schedule with multiple users.

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Snapshots: A snapshot is a copy of each report a schedule or a package generates. Keeping snapshots enables you to resend past reports without generating them afresh - especially if the data has changed in the meantime.
    • Simply select the number of days to keep the snapshots.

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • History: Review the schedule's history. Successes, failures, and other data is located here.

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.

  • Data-Driver

Power BI and SSRS Reports: Data-Driven Paginated Reports Properties in PBRS.
